Winch Solenoid Relay Controller 500A 12V with Wireless Remote

This 500A 12V winch solenoid relay controller manages power to winches between 9500lbs and 17000lbs, with sealed, corrosion-resistant construction built for heavy-duty off-road and recovery work.

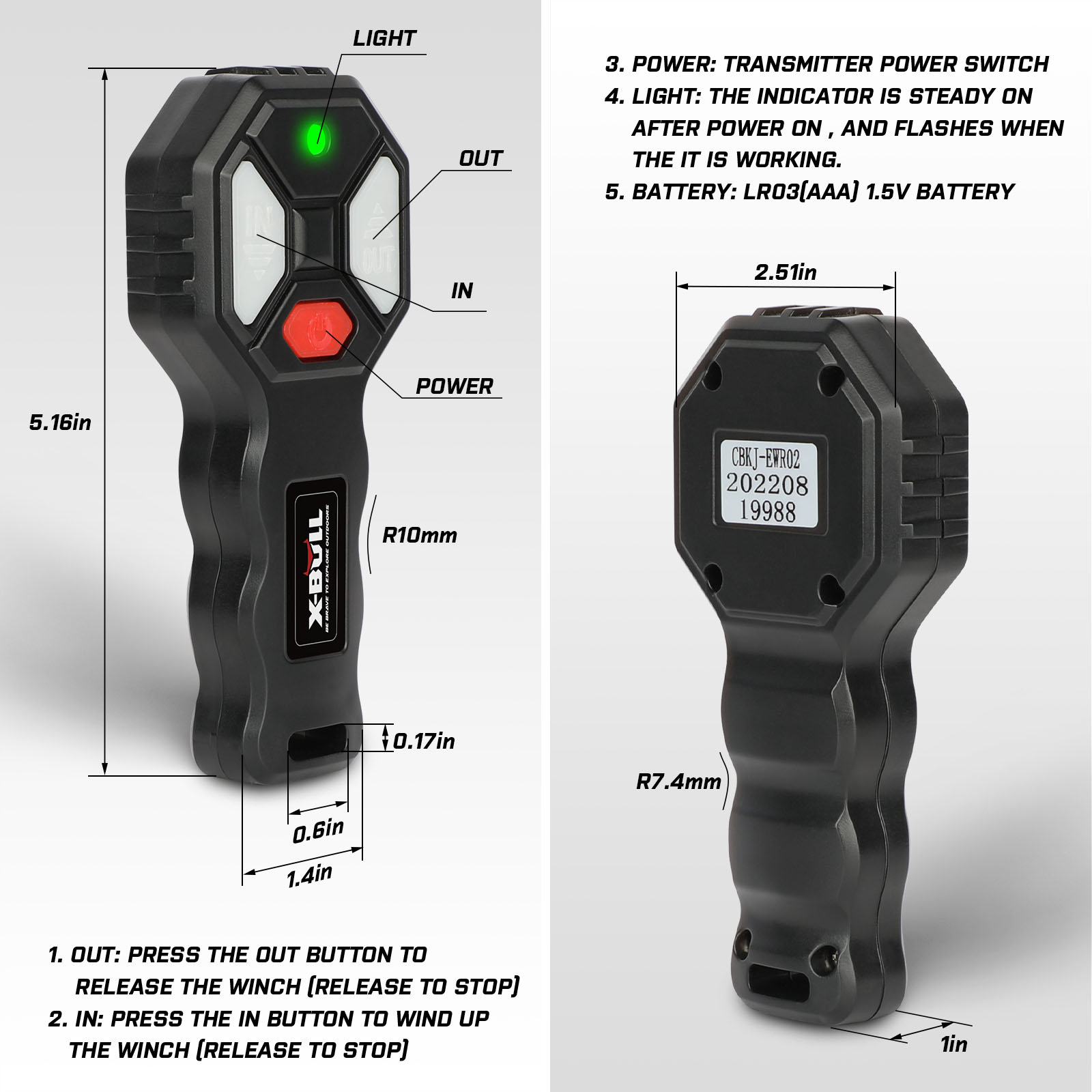

The system includes two wireless remotes with a 45-metre operating range on 315MHz/433.92MHz frequencies, allowing dual-operator control. A visual LED indicator shows when remote commands are active. The solenoid itself handles up to 500A at 80V DC or 250V AC, with mechanical and electrical specifications rated for extensive use: 100,000 mechanical operations and 50,000 electrical cycles.

Key features:
– Sealed and corrosion-resistant design
– Solid heavy-duty construction suitable for serious winch installations
– Two wireless remotes with receiver unit
– Operating temperature range: -40°C to 85°C
– Compatible with any 12-volt solenoid-operated winch

Activation is straightforward: press both remote buttons simultaneously for 5 seconds until the LED lights up. The remote auto-powers after 2 minutes of inactivity for battery conservation.

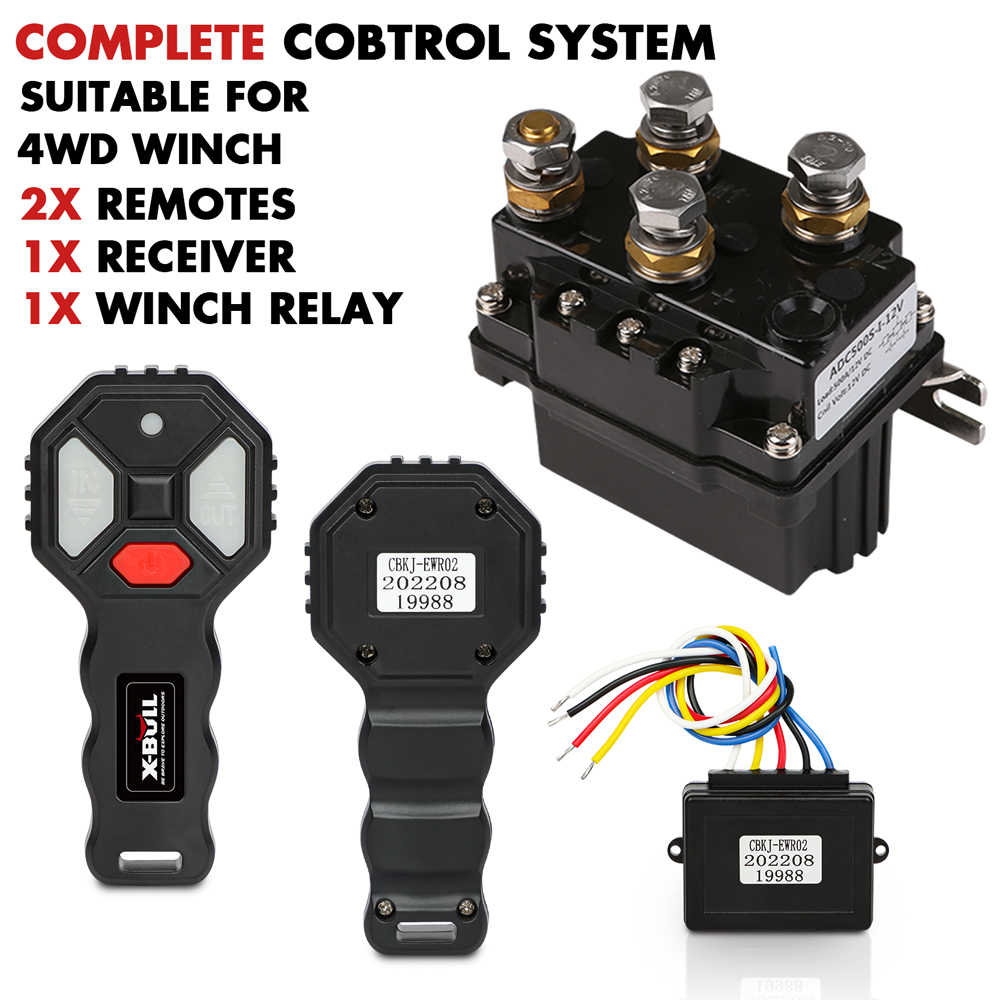

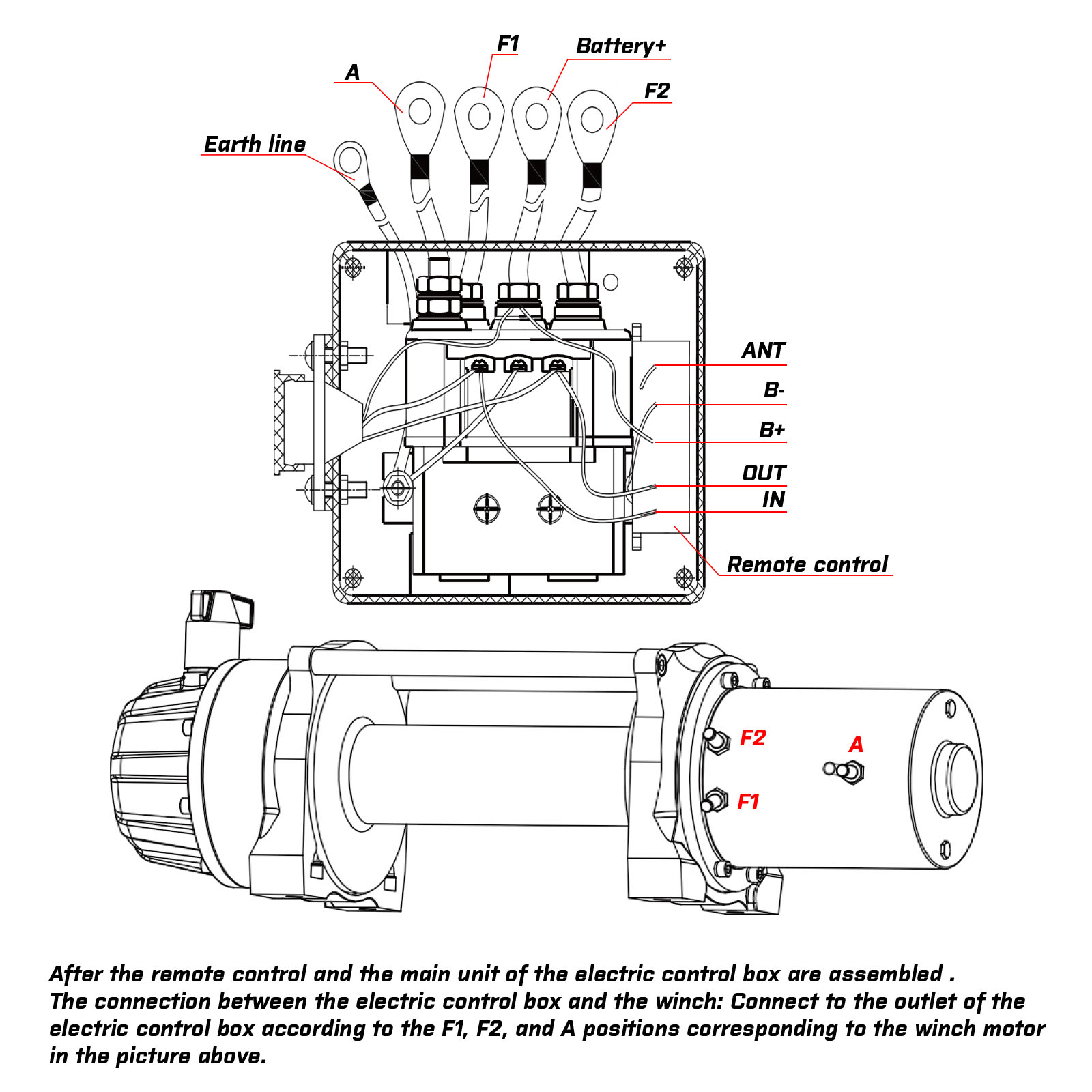

Package includes two remotes, receiver unit, one winch solenoid, user manual, and battery. Refer to the manual for correct installation direction and frequency selection for your region.
