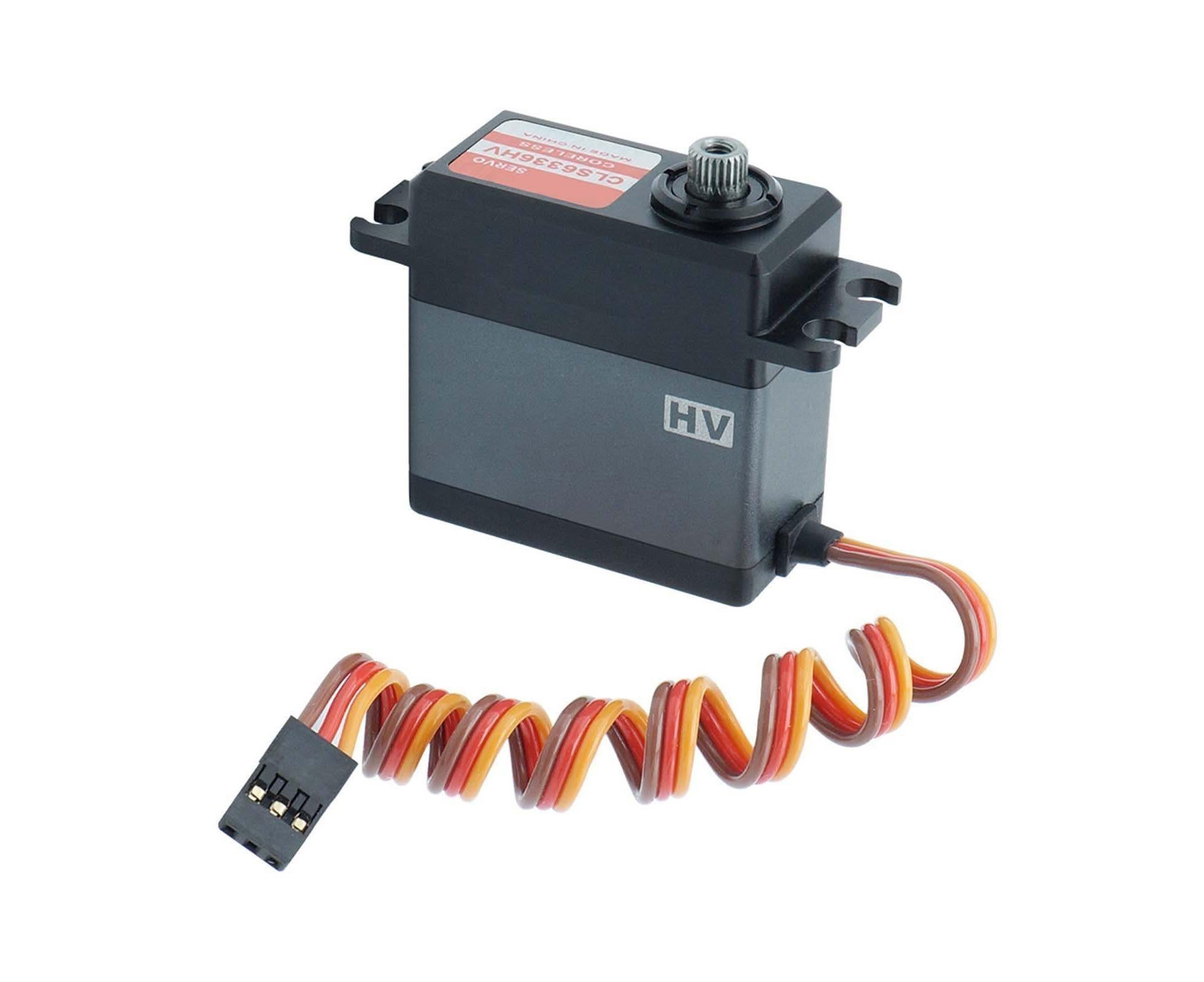

Model servo 36kg high-speed motor with coreless design

This model servo is a high-performance motor control unit designed for precision applications in robotics, drones, and fixed-wing aircraft. It features a coreless motor with exceptional torque output and rapid response times across multiple voltage configurations.

Specifications and performance:
At 6.0V, the servo operates at 0.14 seconds per 60-degree rotation with a stall torque of 27.8kg·cm. Increase voltage to 7.4V and performance improves to 0.11 seconds per 60-degree rotation and 35.6kg·cm stall torque, delivering the high-speed response required for demanding applications. The unit houses a 2-bearing design for stability and longevity.

Build quality and durability:

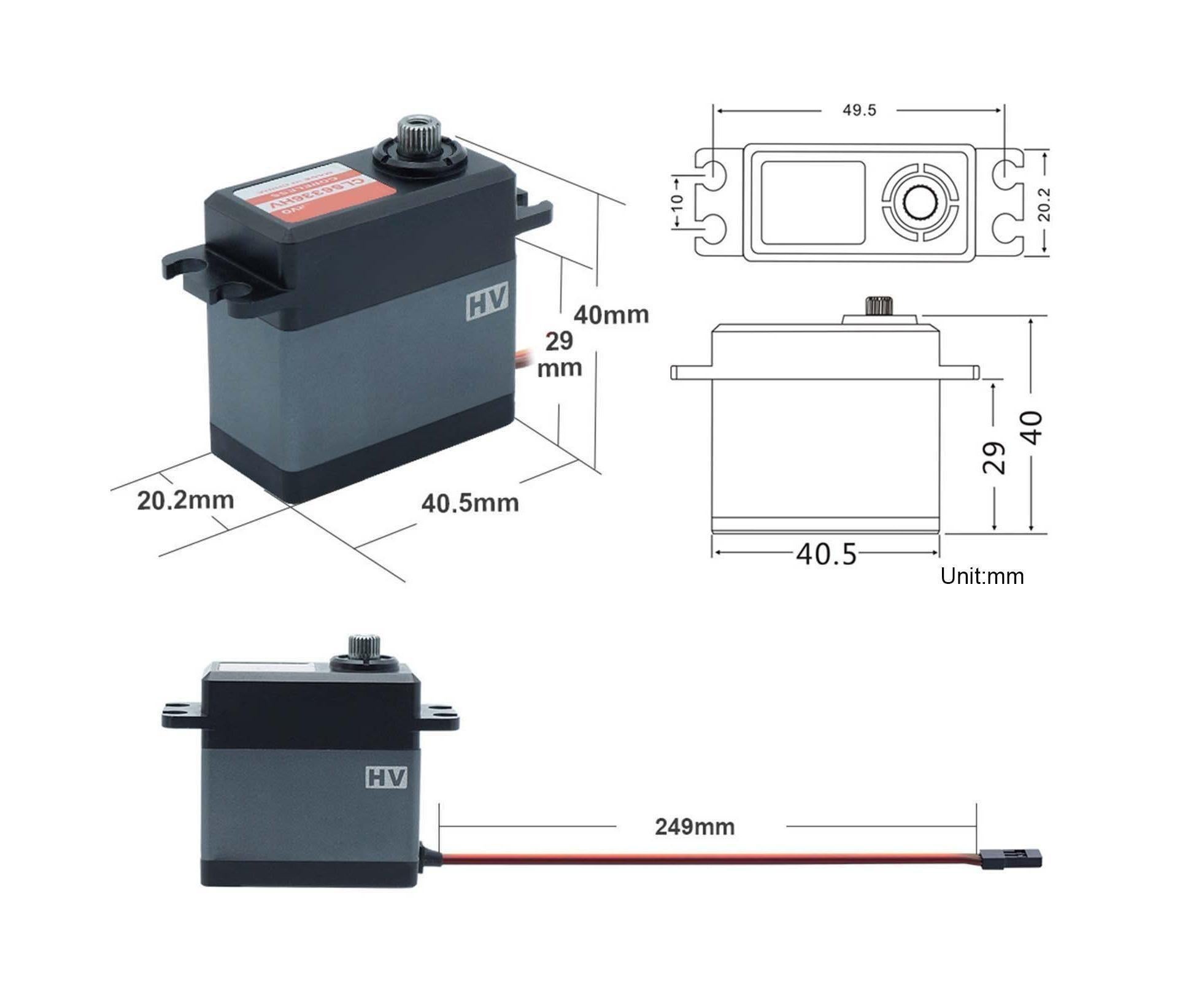

Constructed from plastic and metal materials, this servo meets strict production standards with meticulous workmanship. It weighs just 63g and measures 4.05cm × 2.05cm × 4cm, making it compact without sacrificing structural integrity. The dead band specification of 2µs–1520µs at 330Hz ensures smooth, precise control. Installation is straightforward with no complex procedures required.

Connectivity and compatibility:
The unit includes a JR-standard connector with 265mm wire length, ensuring compatibility with most receiver boards and control systems used in fixed-wing aircraft, 450-size helicopters, and robotic platforms. Its stable performance across these applications makes it a reliable choice for hobbyists and professionals alike.

To get started, verify your power supply voltage matches the servo’s operating range and connect using the included JR connector.
