X-BULL Electric Winch: 5000lbs Power with Synthetic Rope for ATVs, UTVs, Boats and 4WDs

For You is Super

The X-BULL 5000lbs is one of our new X-BULL high-efficiency winches for all offroad and life-loving customers in 2021. Over the past few years, we docu ment the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 5000lbs uses the stronger 500A relays on the market. We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. XX-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.

What do you need to focus on most?

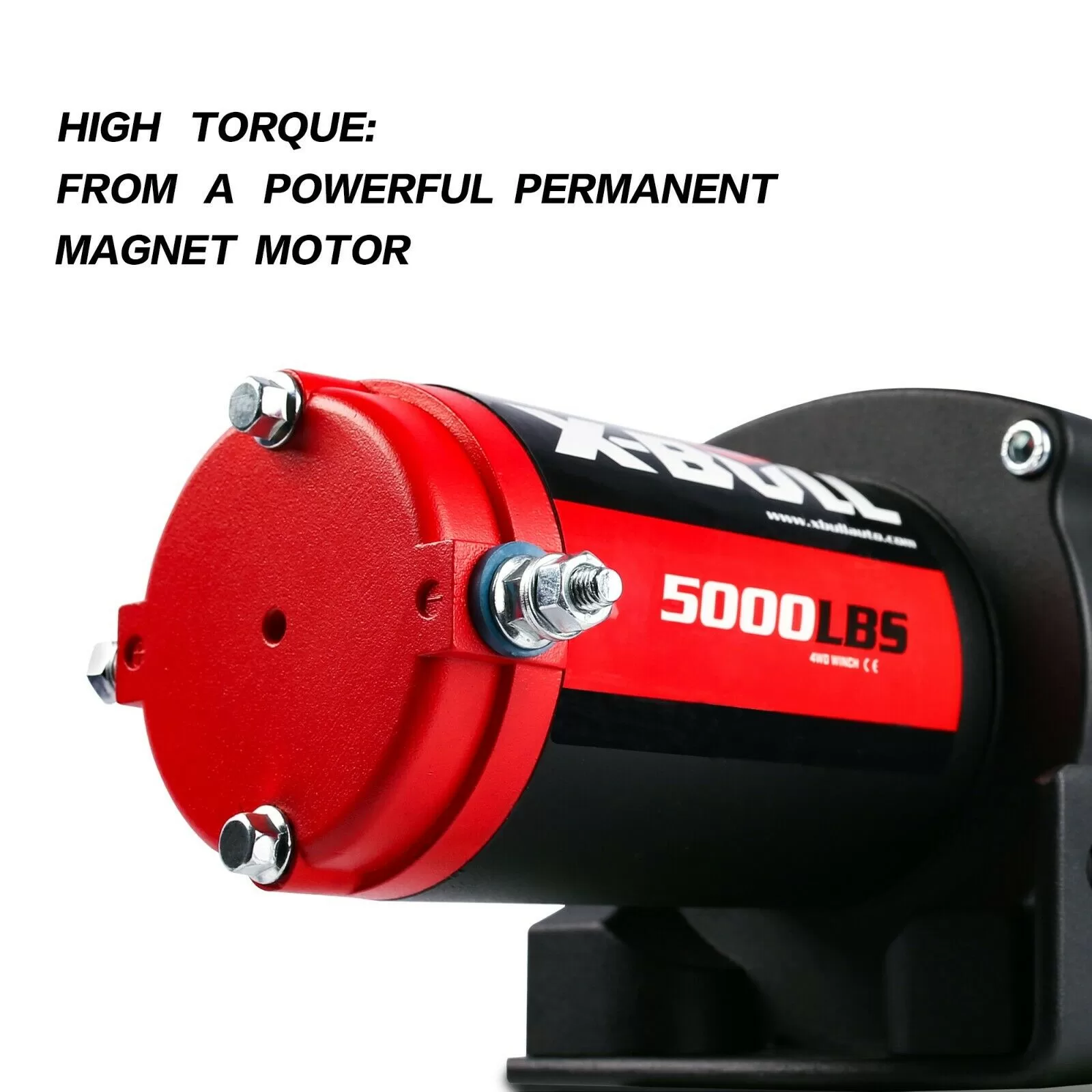

Motor

Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

Winch Solenoid Relay

Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches,not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.

3-Stage Planetary

The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).

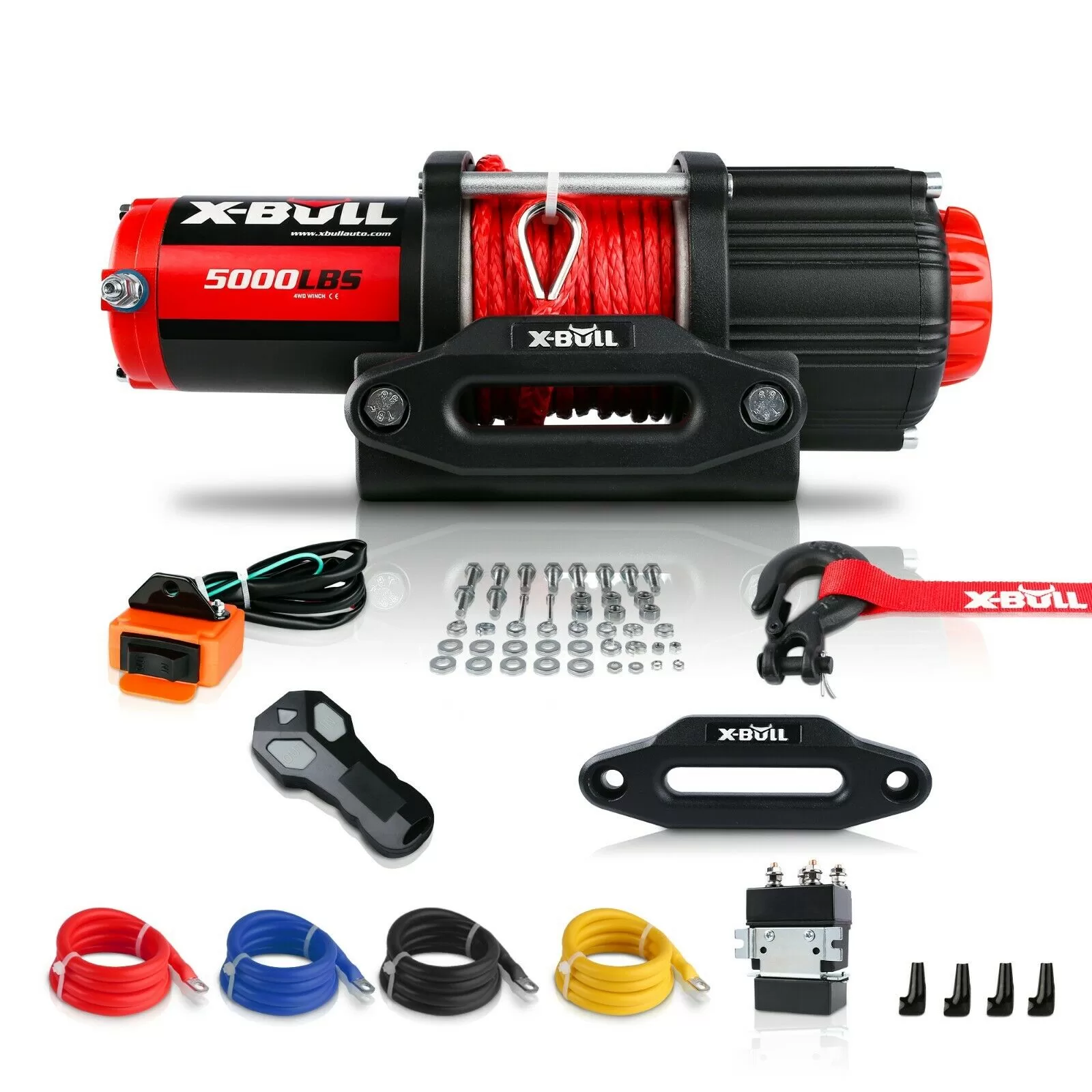

In The Box

5000LBS Winch x1
Wireless Remote Control x1
User Manual x1

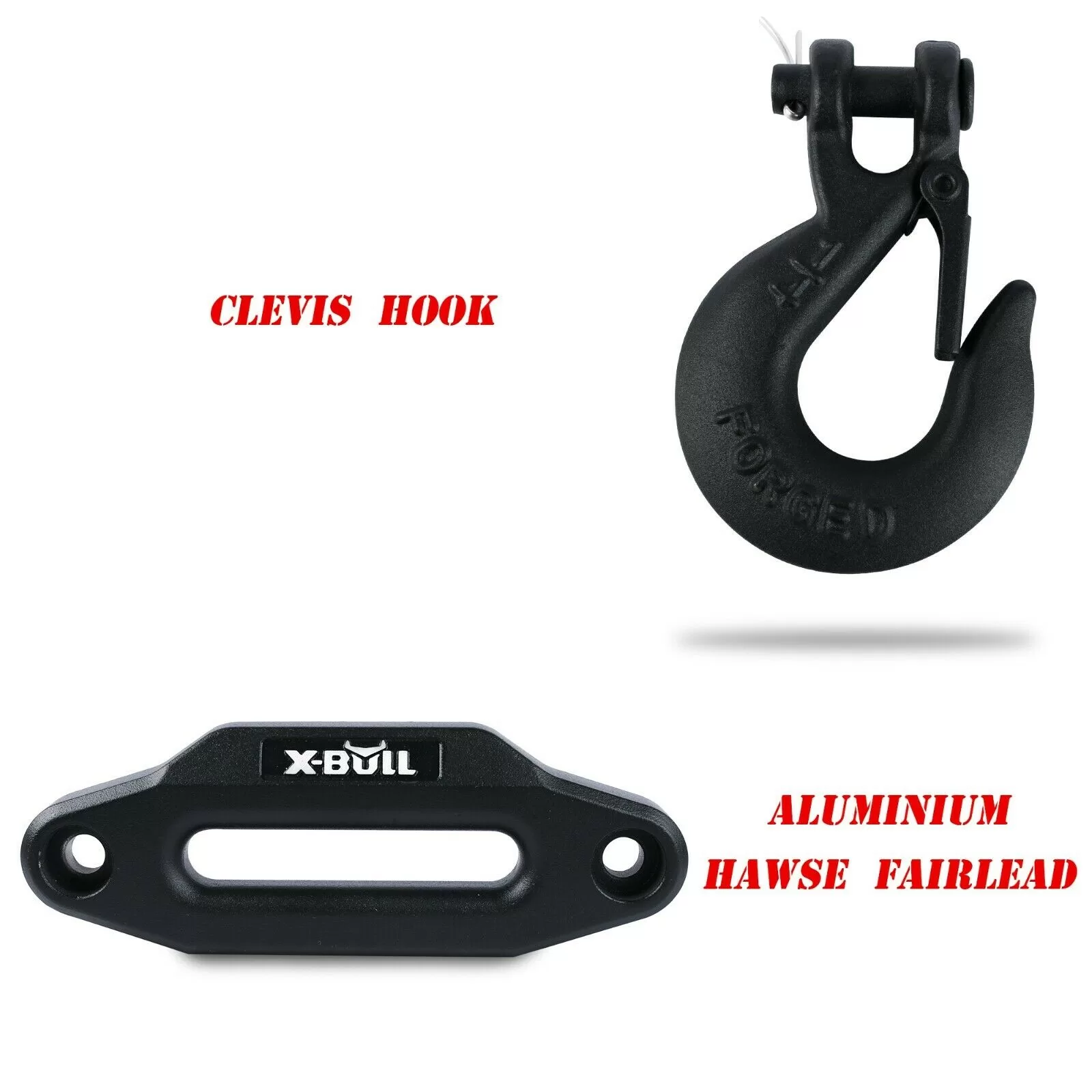

Aluminium Hawse Fairlead x1
Joint Protective cap x4
Controller(solenoid+receiver)

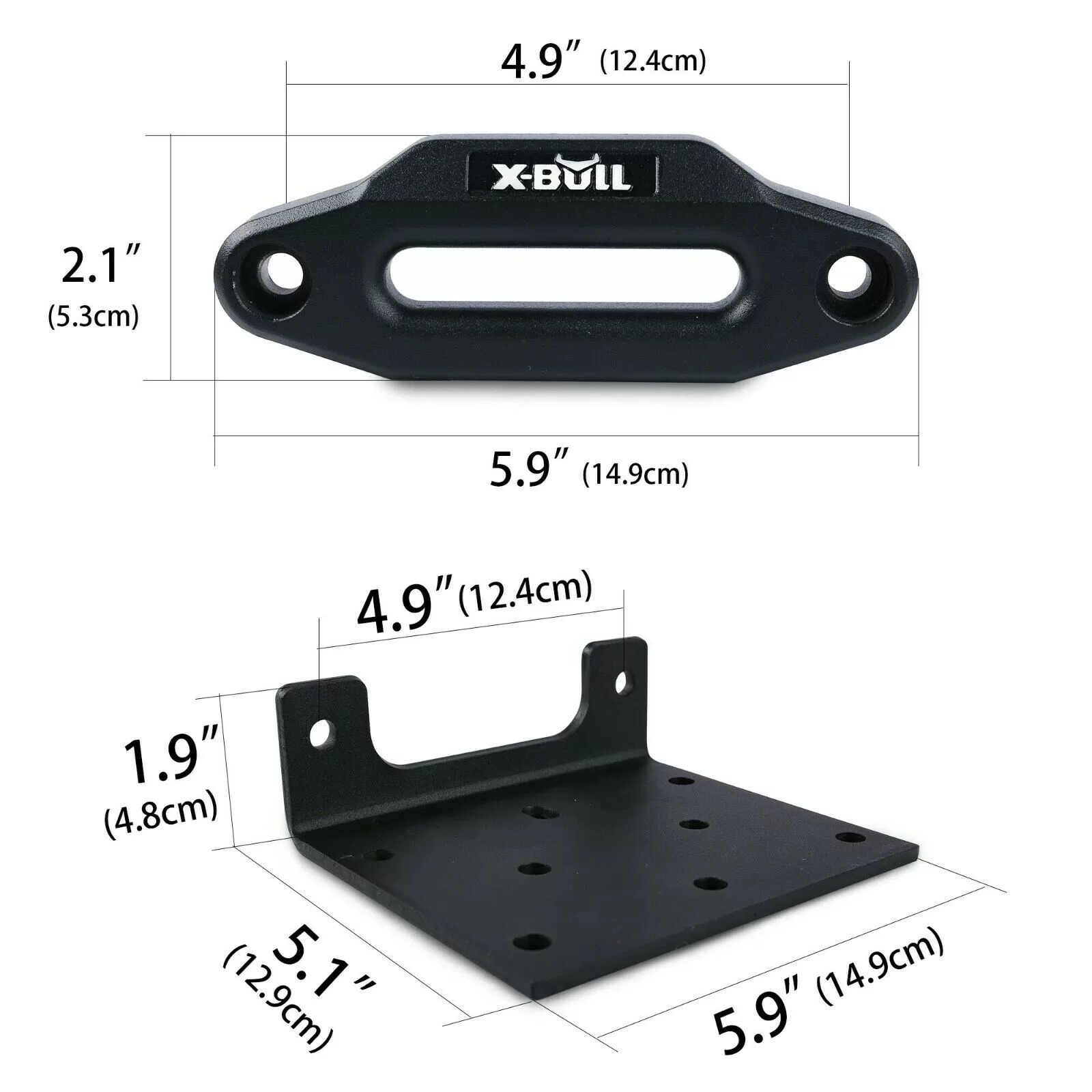

Winch Mounting Plate x1
Solenoid Cables x4
Set of Bolts x1
Clevis Hook x1

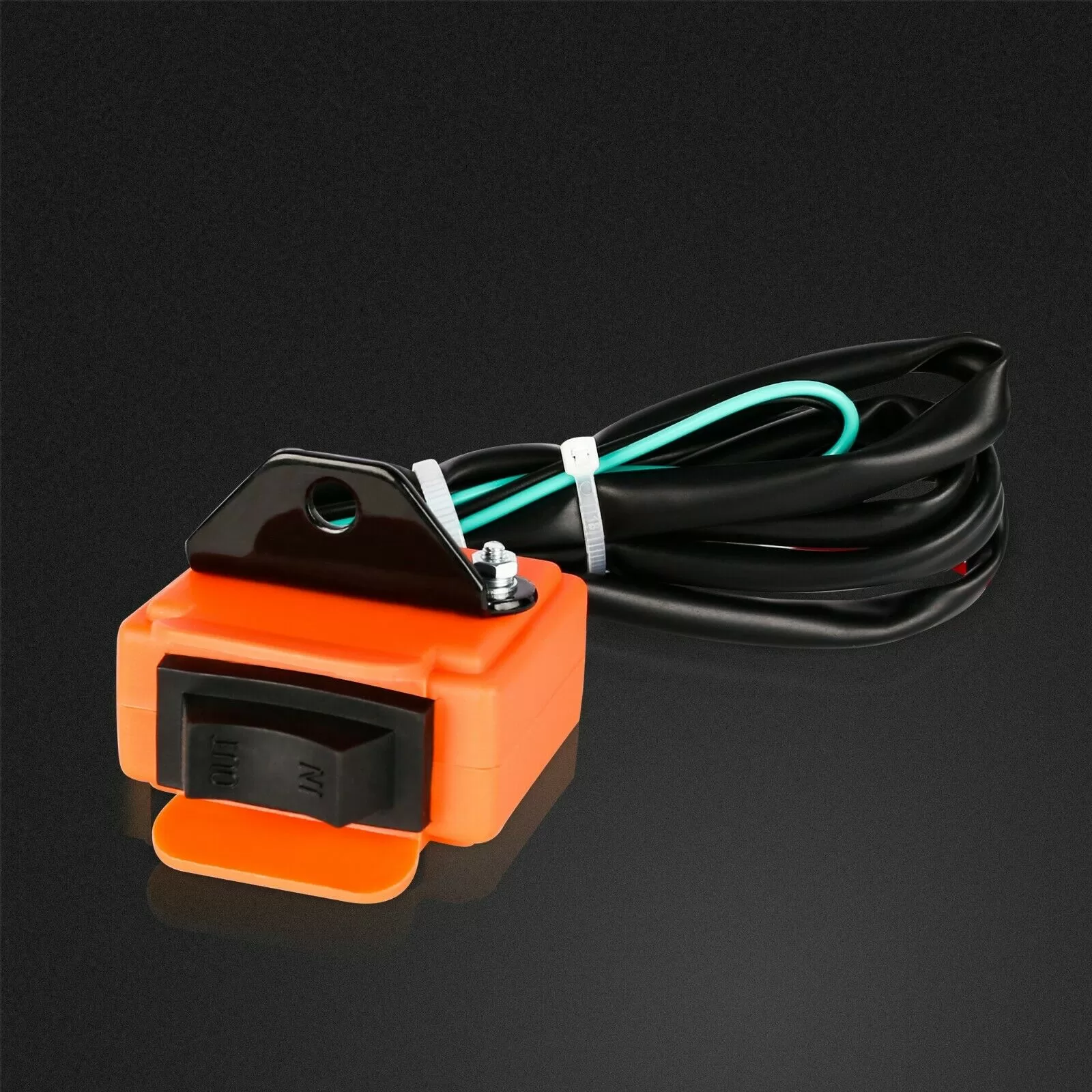

Hand Remote Control x1

Specifications
Rated Single Line Pull: 5000lb.(2268kg)
Synthetic Rope: 1/4” x 50′ (6.3mm x 15.2m)
Winch Certification: CE
Battery: 12VDC, Minimum 12Ah
Duty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest)
Overall Dimensions(L X D X H): 15.8” X 4.6” X 4.7” (400 X 116 X 119mm)
Solenoid: 6 gauge, 3′(0.92m) longApplication:ATV/UTV/BOAT
Mounting Pattern: 3” x 6.6” (76.2mm x 167.6mm)
Gear train: 3-Stage Planetary
Adaptor Plate: 2x G8, M8-1.25 X 25mm
Freespool: Cam Activated
Fairlead: 2x G8, M8-1.25 X 20mm
Hook:1/4″ Clevis, with Spring-loaded Safety Latch
Sound Rating: 85 dB
Weight: 26.45lb. (12kg.)
IP Rating: IP 66-Winch and Controls(except remote switch, resistant to powerful water jets??
