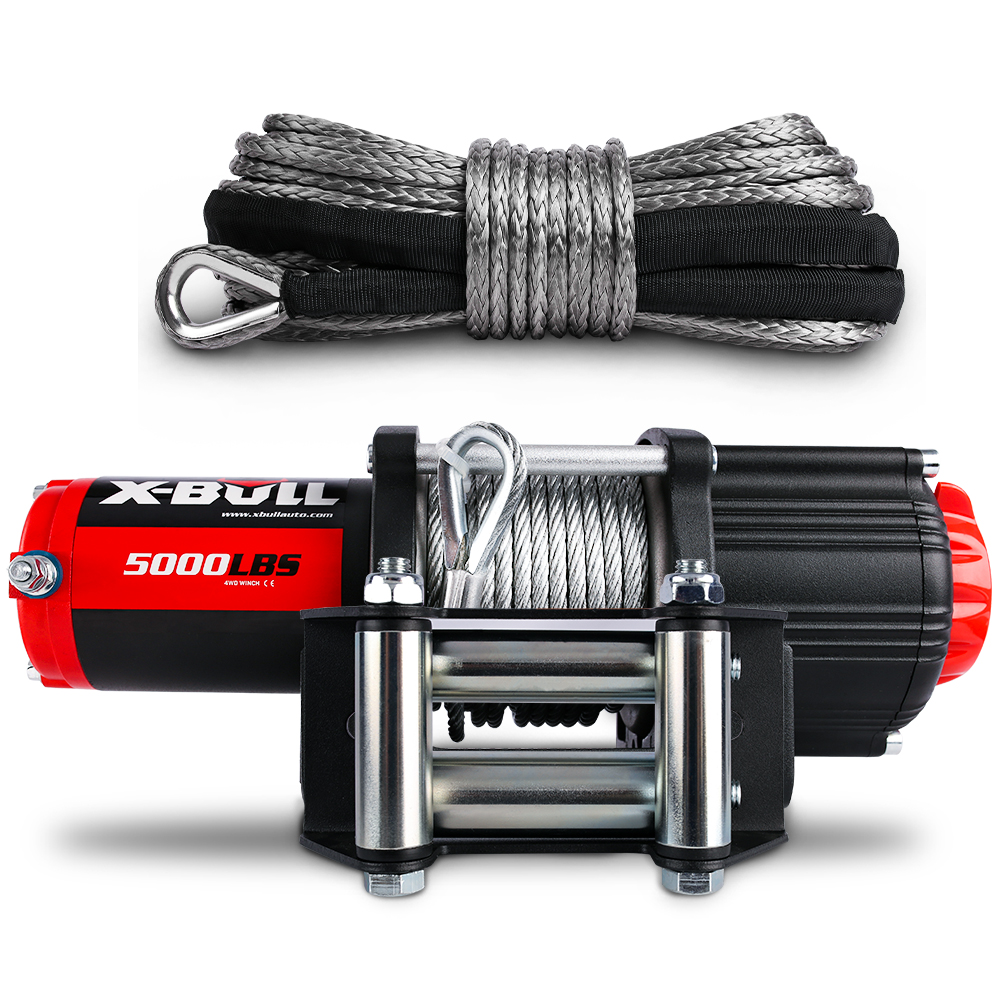

X-BULL 5000LBS Electric Winch 12V with Wireless Control

The X-BULL 5000LBS Electric Winch is a 12V recovery winch designed for ATV, boat and off-road vehicle mounting. It combines pure copper motor technology with a heavy-duty three-stage planetary gear system to deliver reliable pulling power when you need it.

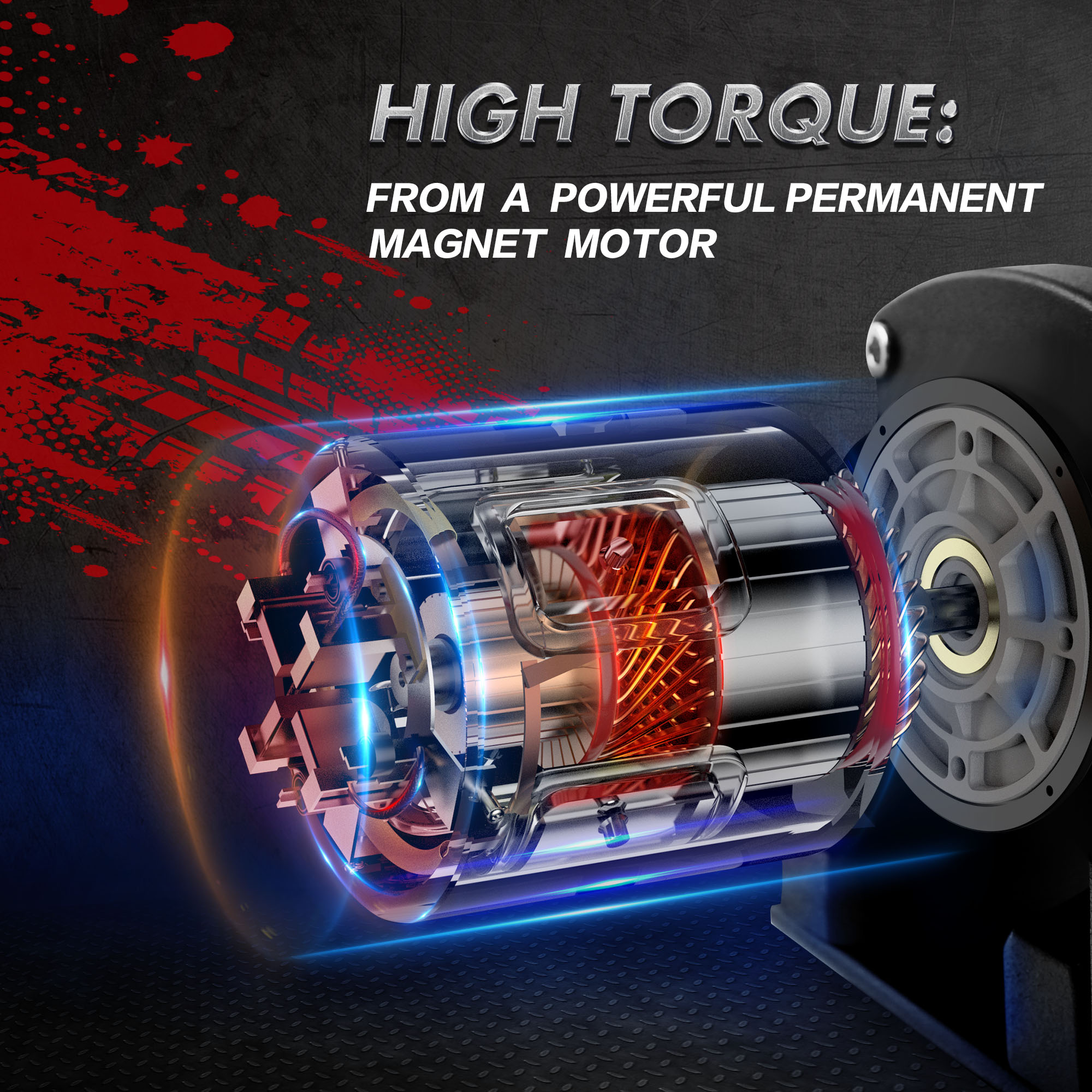

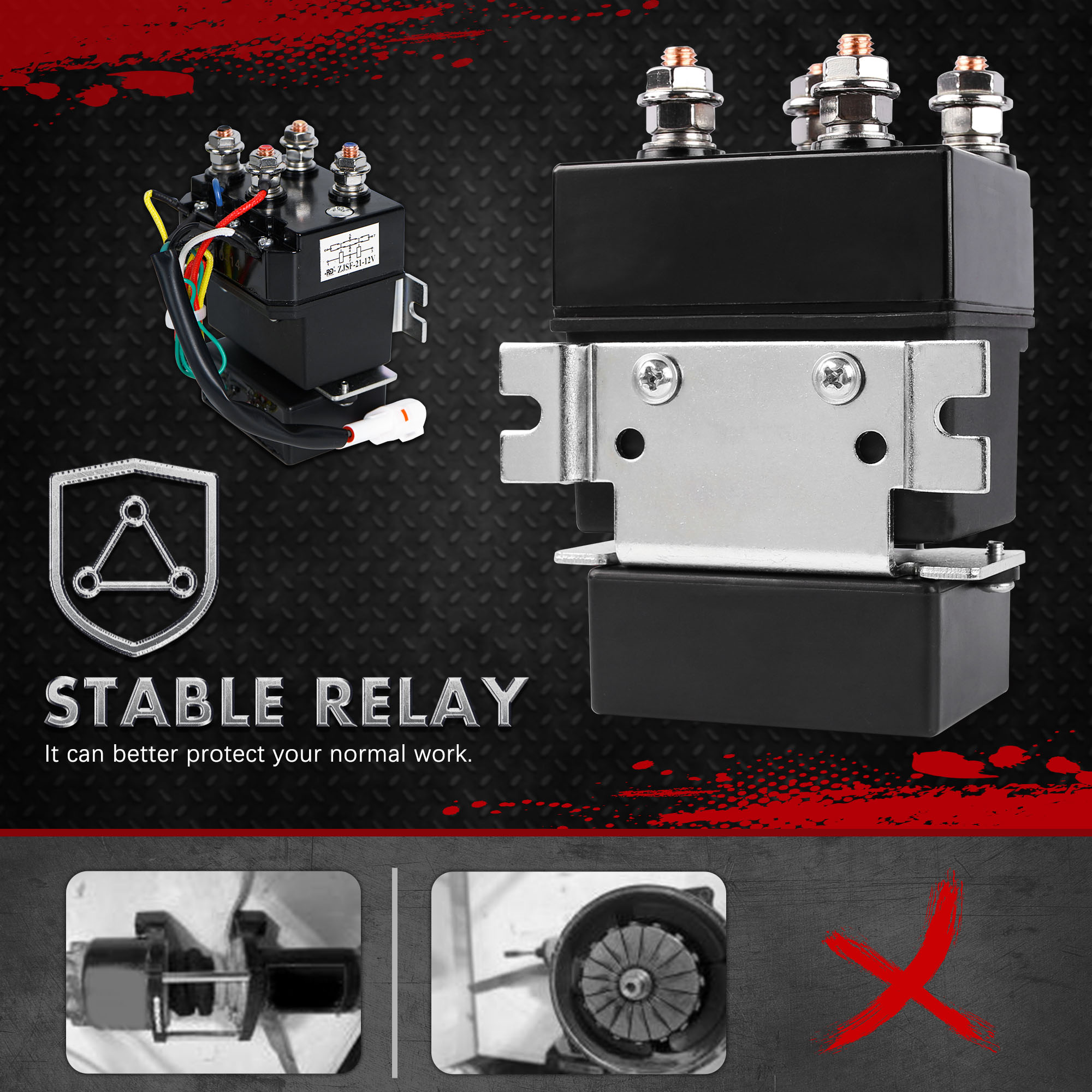

Key features include a 12VDC 1.5HP permanent magnet motor, three-stage planetary reduction gears (198:1 ratio), and a 500A relay engineered to handle sustained loads without damage. The all-steel housing with black frosted finish resists corrosion, while the diamond-shaped design aids gearbox heat dissipation during extended operation.

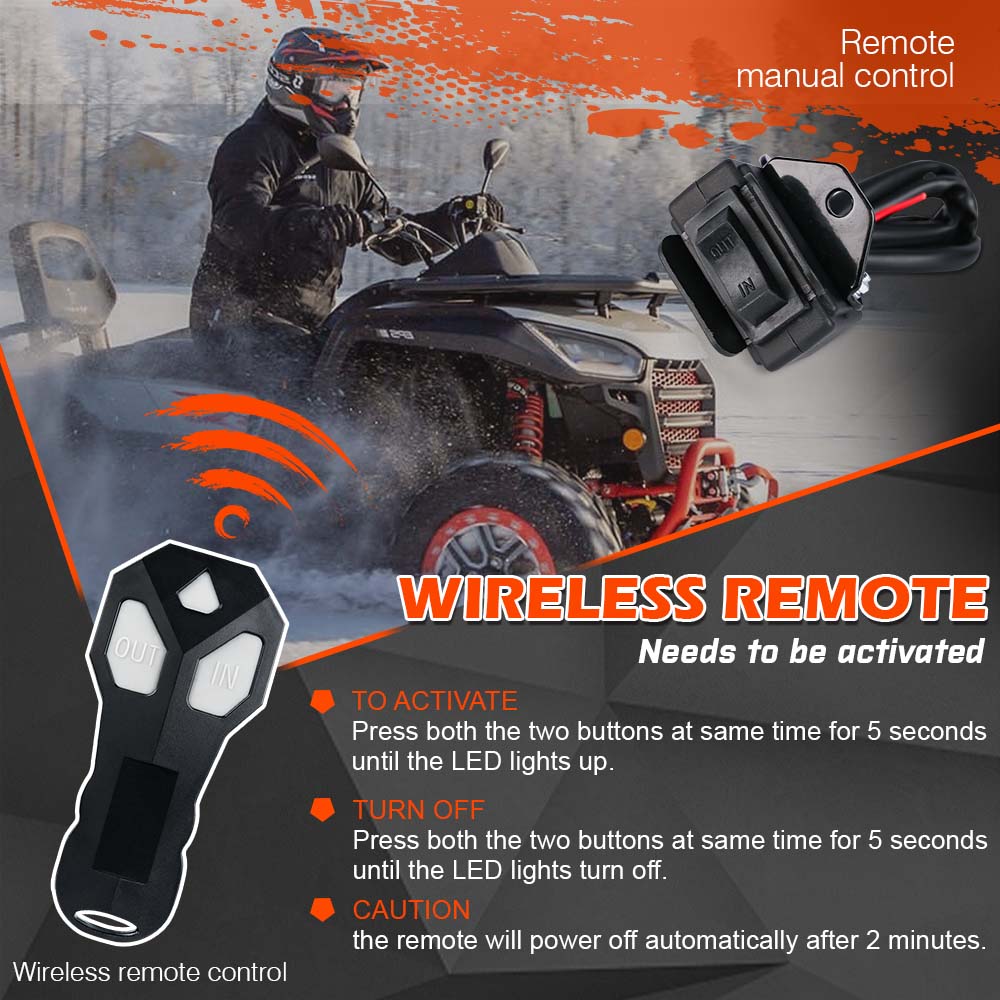

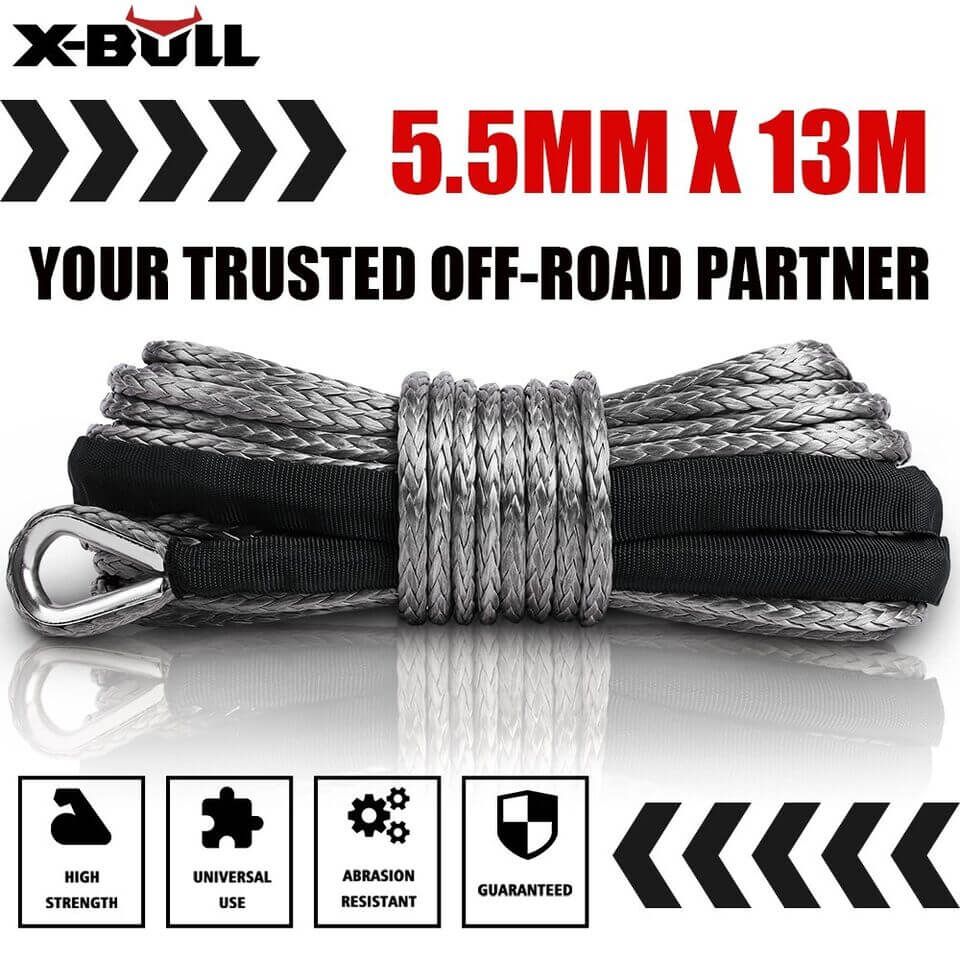

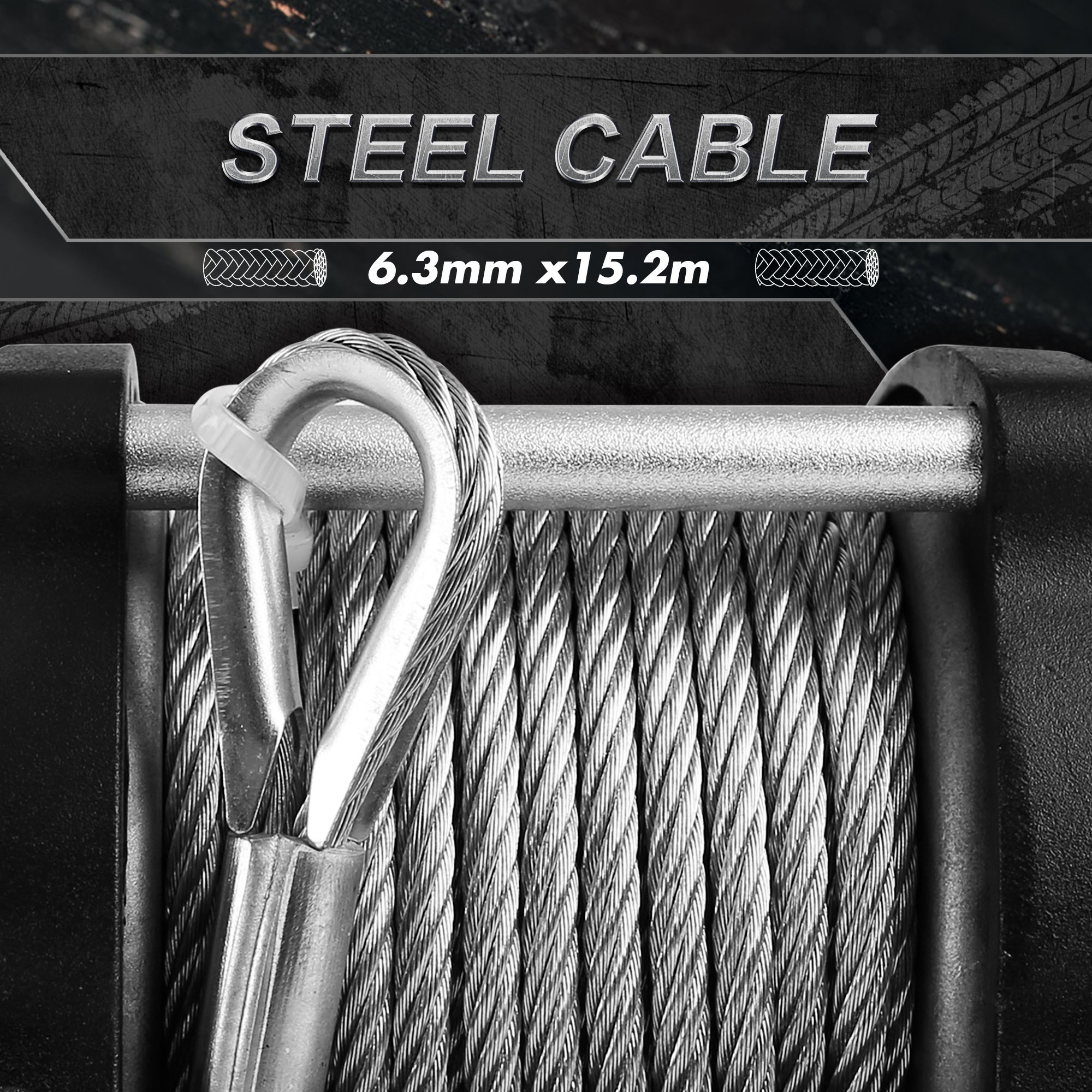

Control is flexible: operate via wireless remote control or hand-held wired remote. The mechanical brake keeps your load secure when the winch is idle. A 4-way roller fairlead guides cable smoothly across the mounting point, and the dual spool setup handles the included 5.5mm x 13m synthetic rope or the 6.3mm x 15.2m steel cable option.

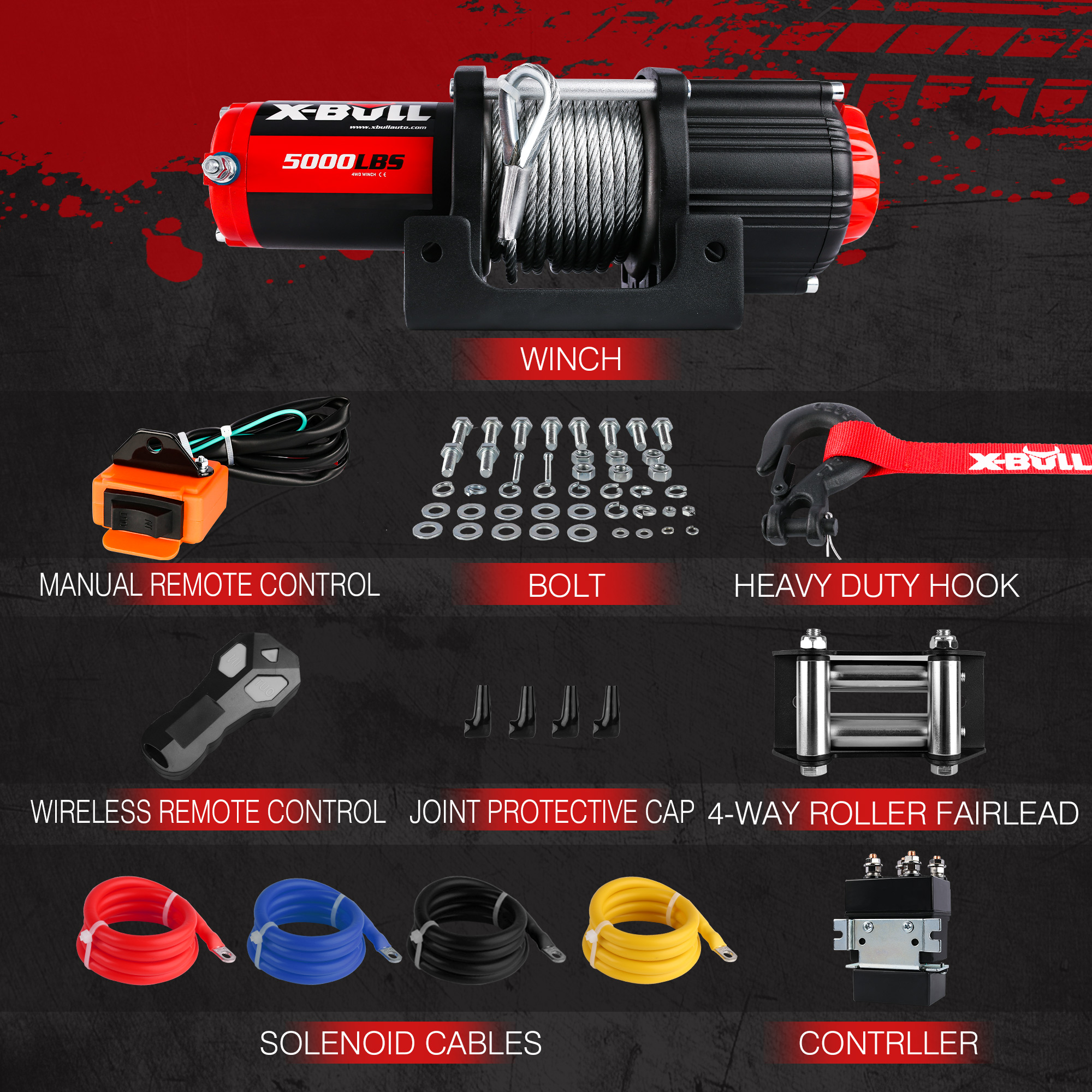

The complete package includes both wireless and wired remotes, solenoid controller with receiver, 4-way fairlead, mounting plate, clevis hook, and all hardware. Total weight is 12kg, making it compact enough for smaller vehicles.

Check the specification sheet for dimensions (330mm x 117mm x 120mm) and verify your vehicle’s mounting capacity before installation.
