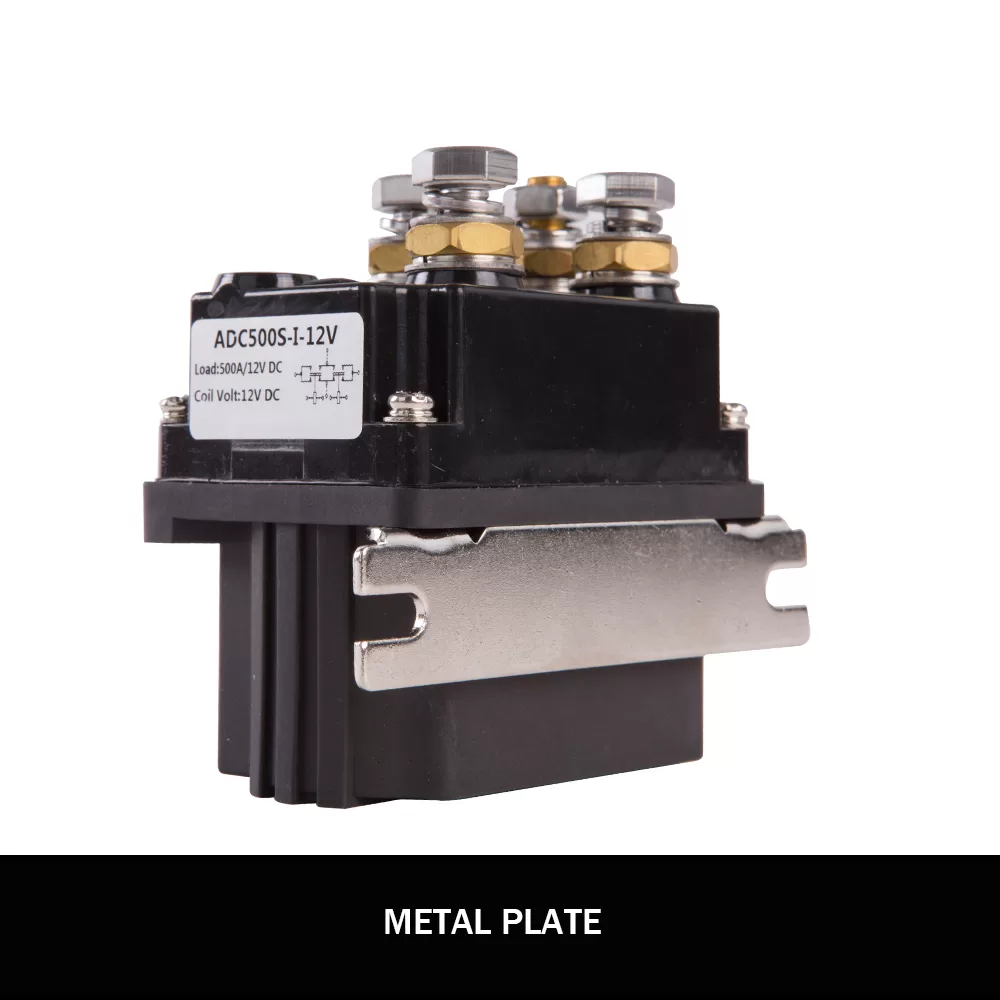

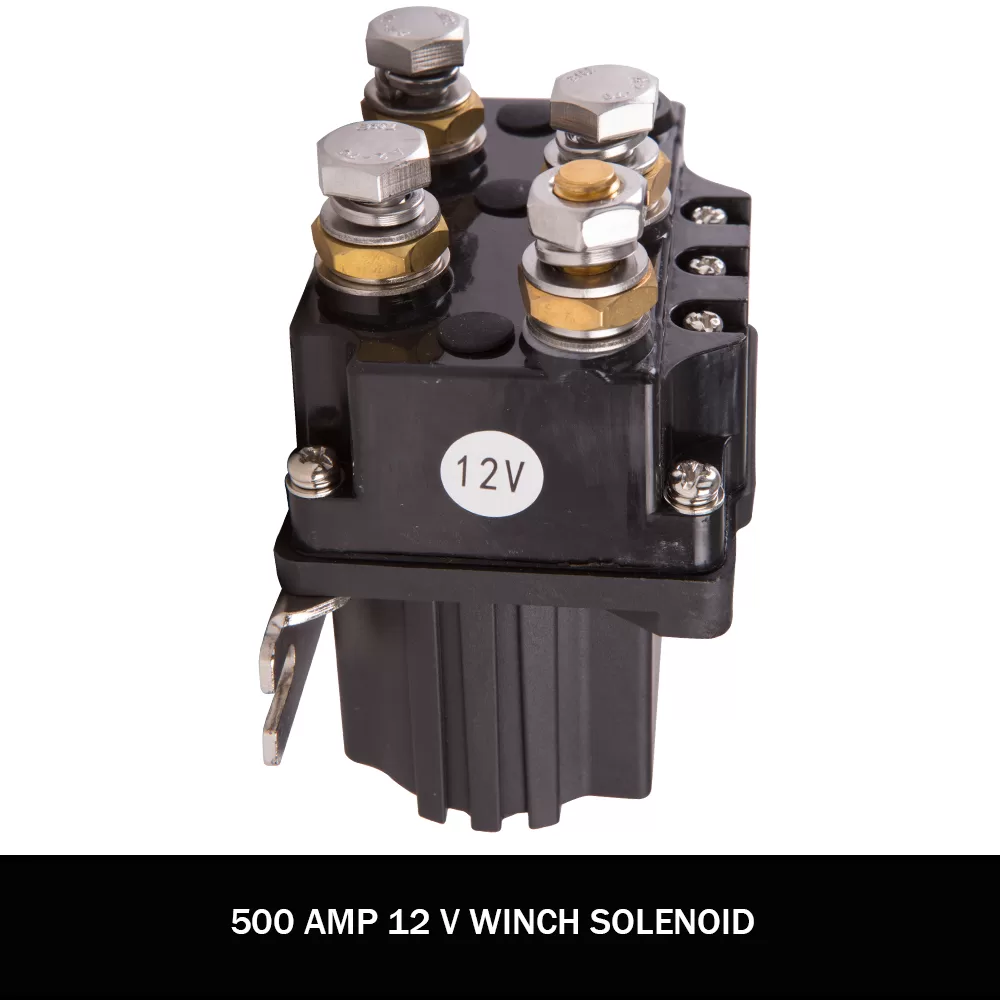

X-BULL 500A DC Winch Solenoid Switch 12V

The X-BULL 500A DC Winch Solenoid Switch is a sealed contactor designed for 4×4 winch systems rated from 9500lbs to 17000lbs. It handles 500A continuous current with solid heavy-duty construction and corrosion-resistant sealing.

Rated for 6–110V DC coil voltage, this solenoid operates at 15W power with contact circuit capacity up to 80V DC (250V AC maximum). The unit delivers 100,000 mechanical operations and 50,000 electrical operations, making it reliable for frequent use in remote recovery scenarios.

Environmental specifications cover –40°C to 85°C, so it performs in extreme Australian conditions. Operating frequency ranges from 10Hz to 200Hz at 60–100 cycles per minute, with continuous regulation and random installation direction flexibility.

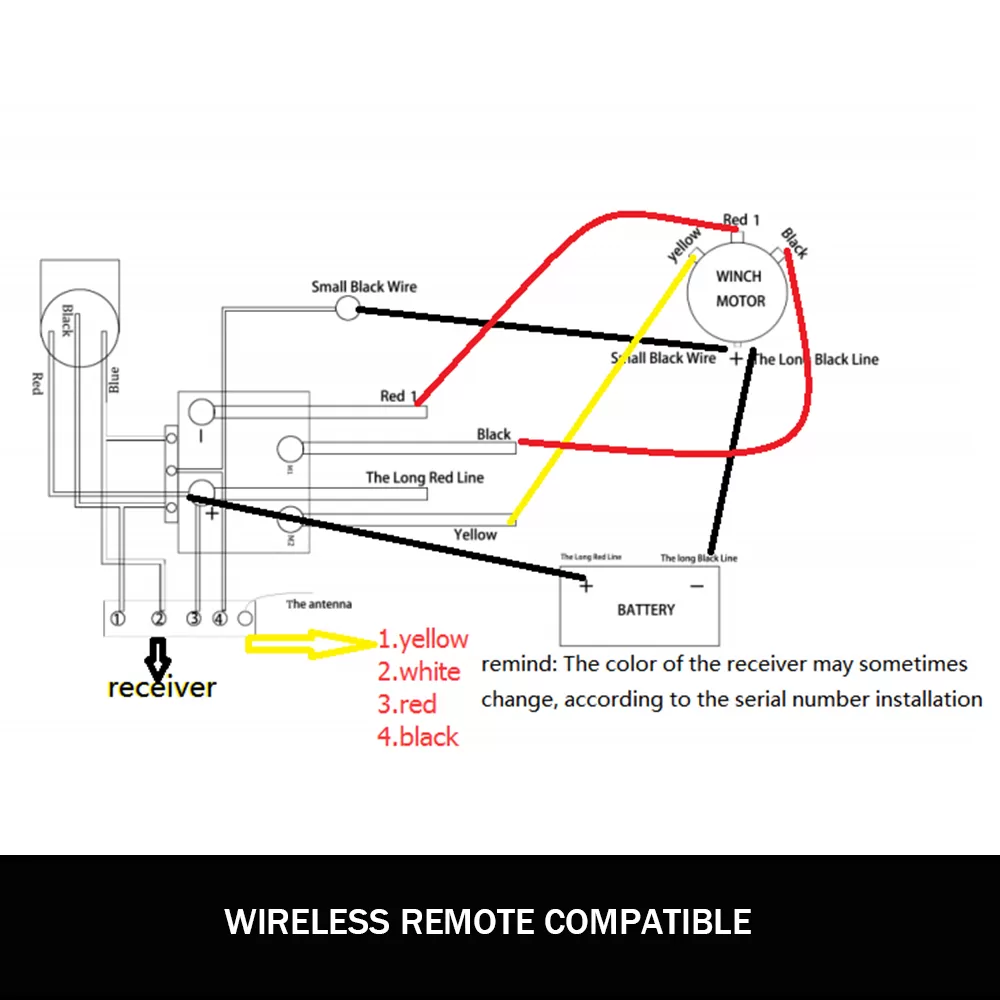

Wireless remote compatible, this switch integrates seamlessly with aftermarket winch control systems. The combination of series-wound and permanent magnet design ensures stable engagement and smooth power delivery.

Select this solenoid for dependable 12V winch operation in tough terrain. Check your winch’s amperage rating (typically printed on the motor) and order with confidence.
