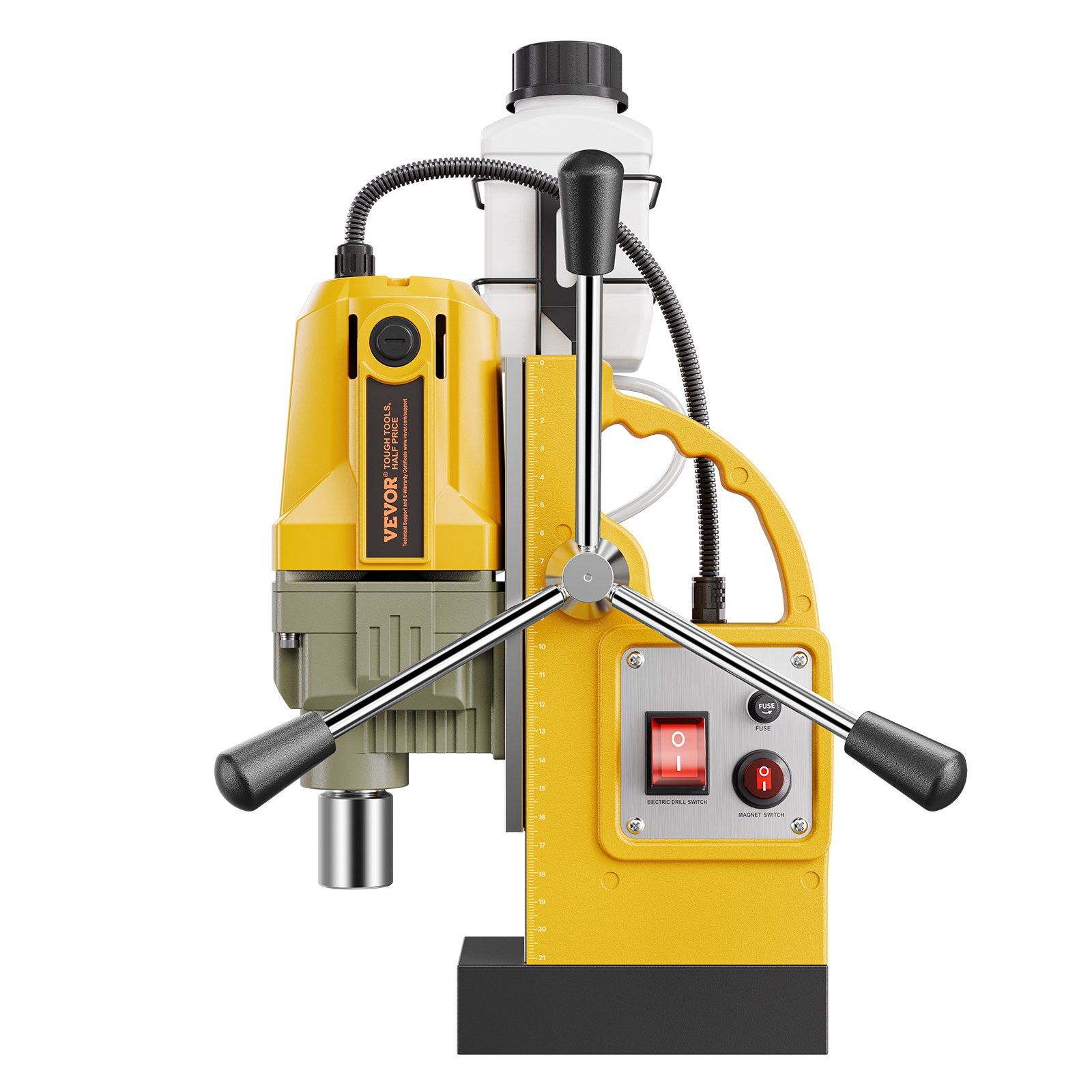

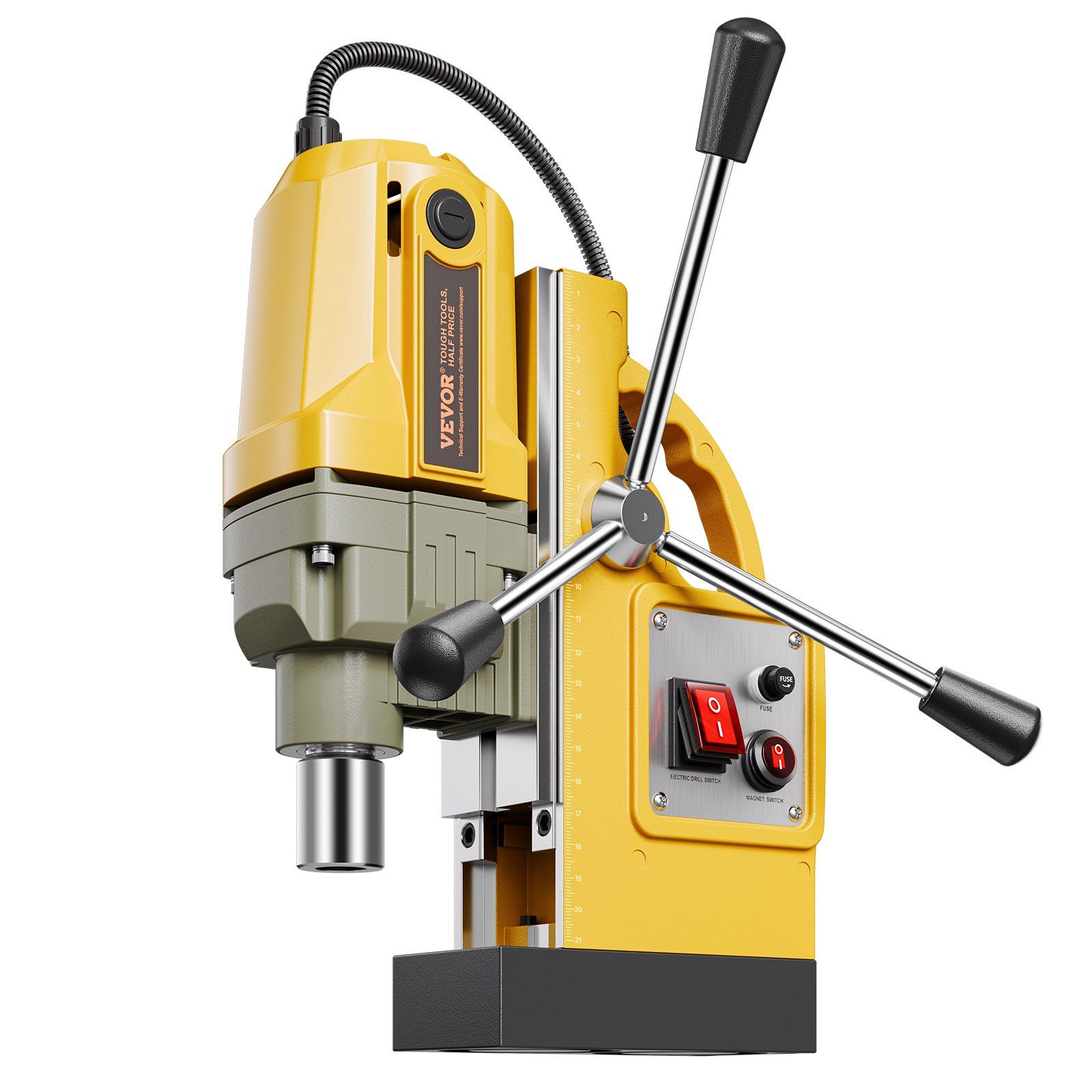

Magnetic Drill 1400W 1.6 inch Boring

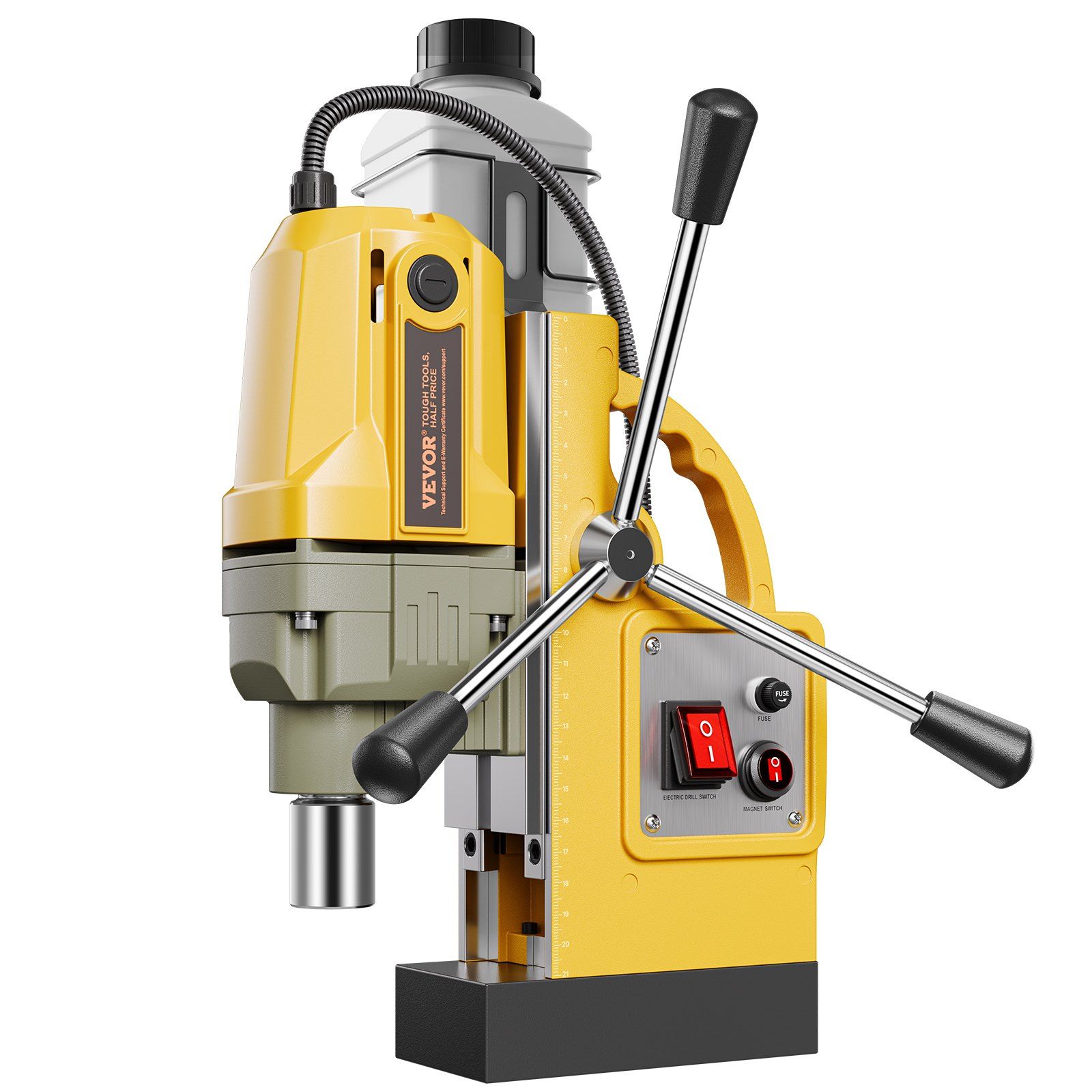

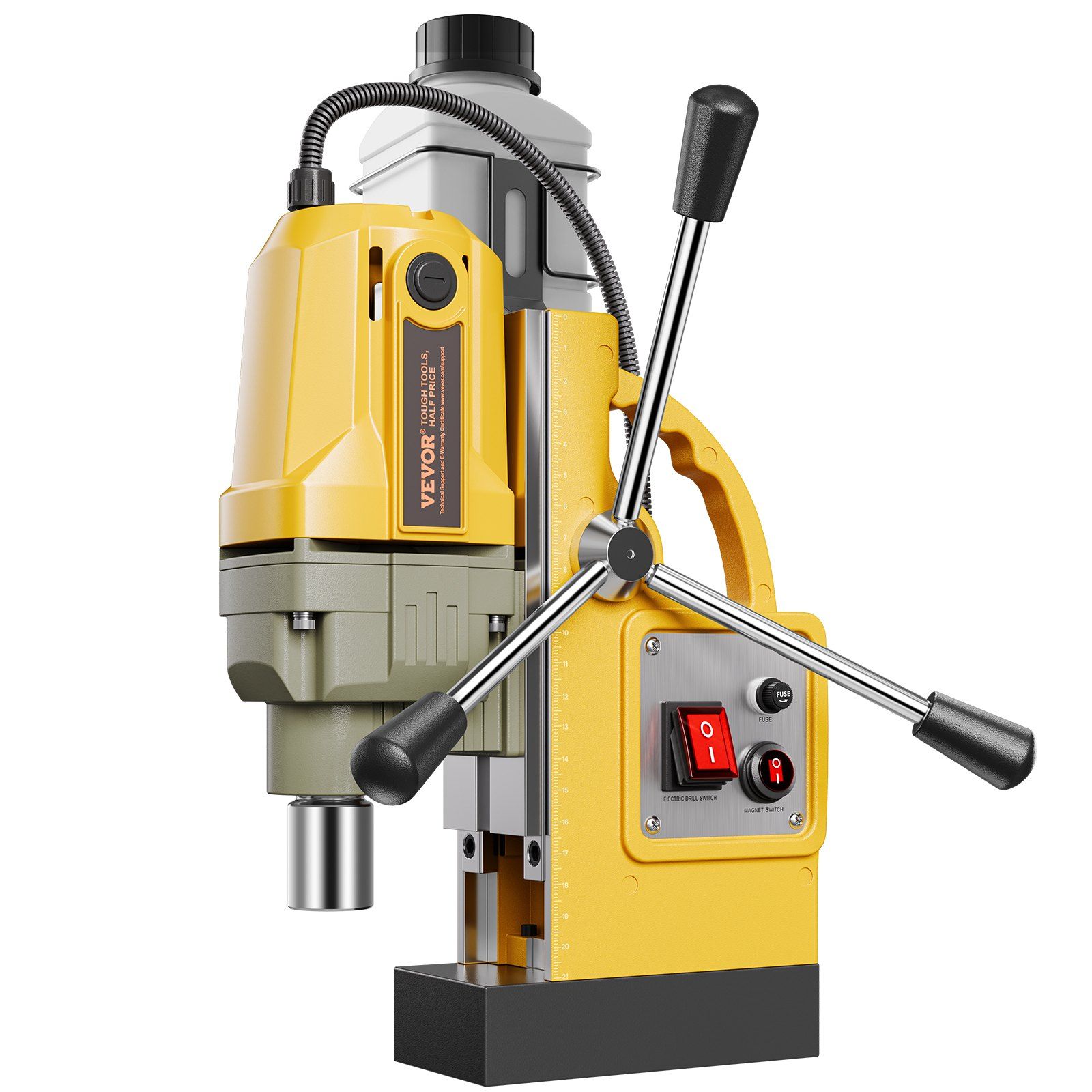

This magnetic drill is a 1400W electric drilling machine designed for metal fabrication, industrial work, and home improvement projects.

Specification and Performance:

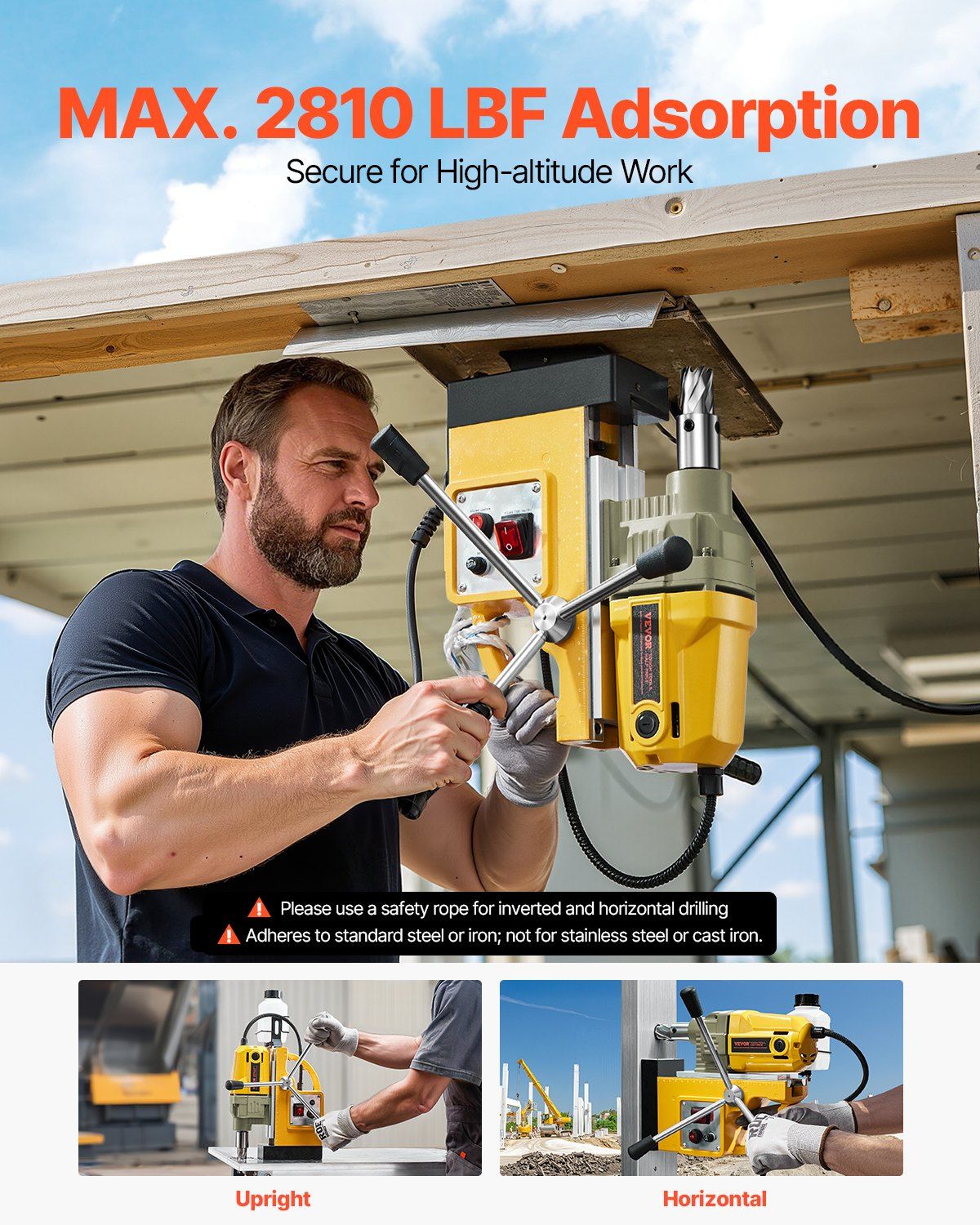

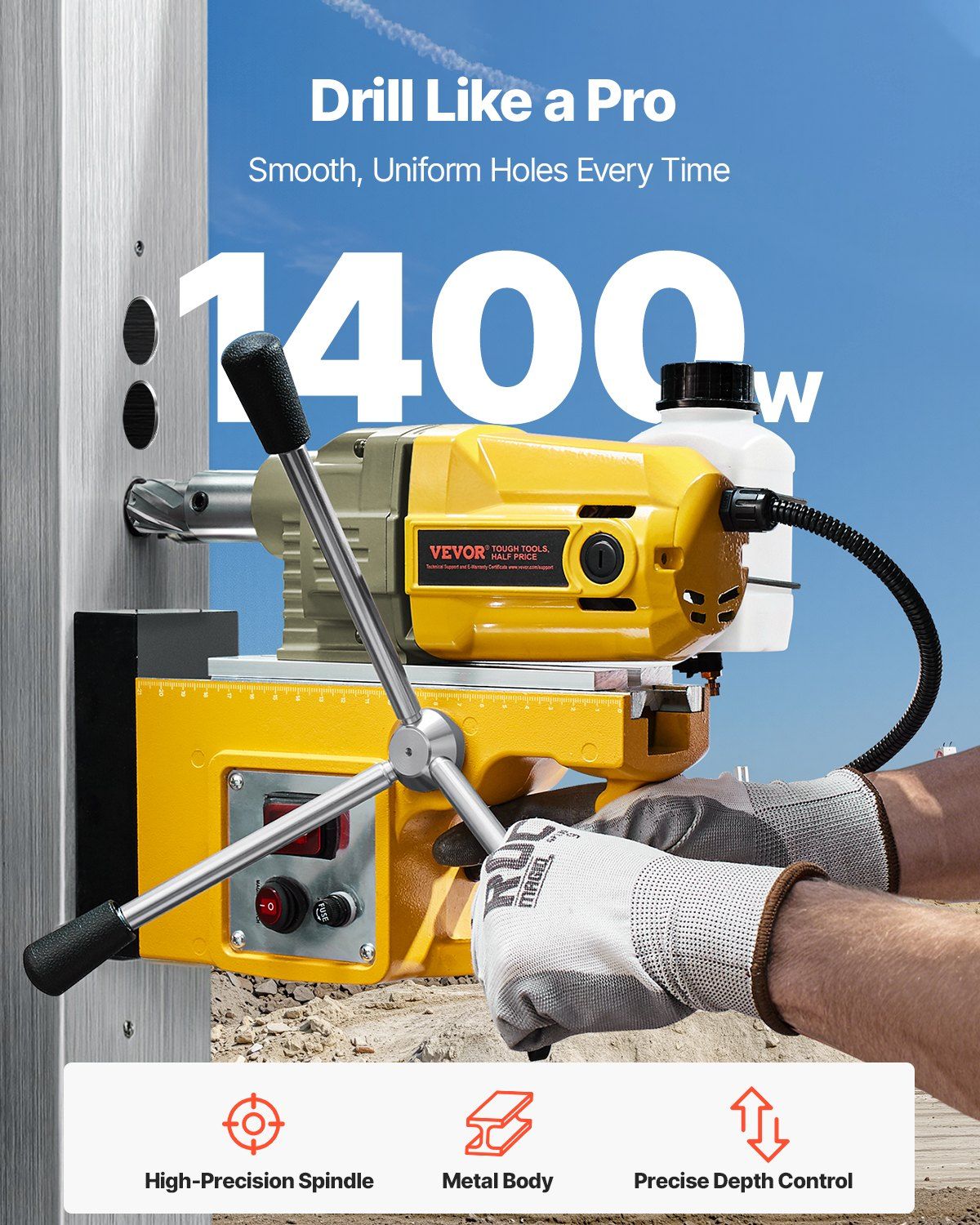

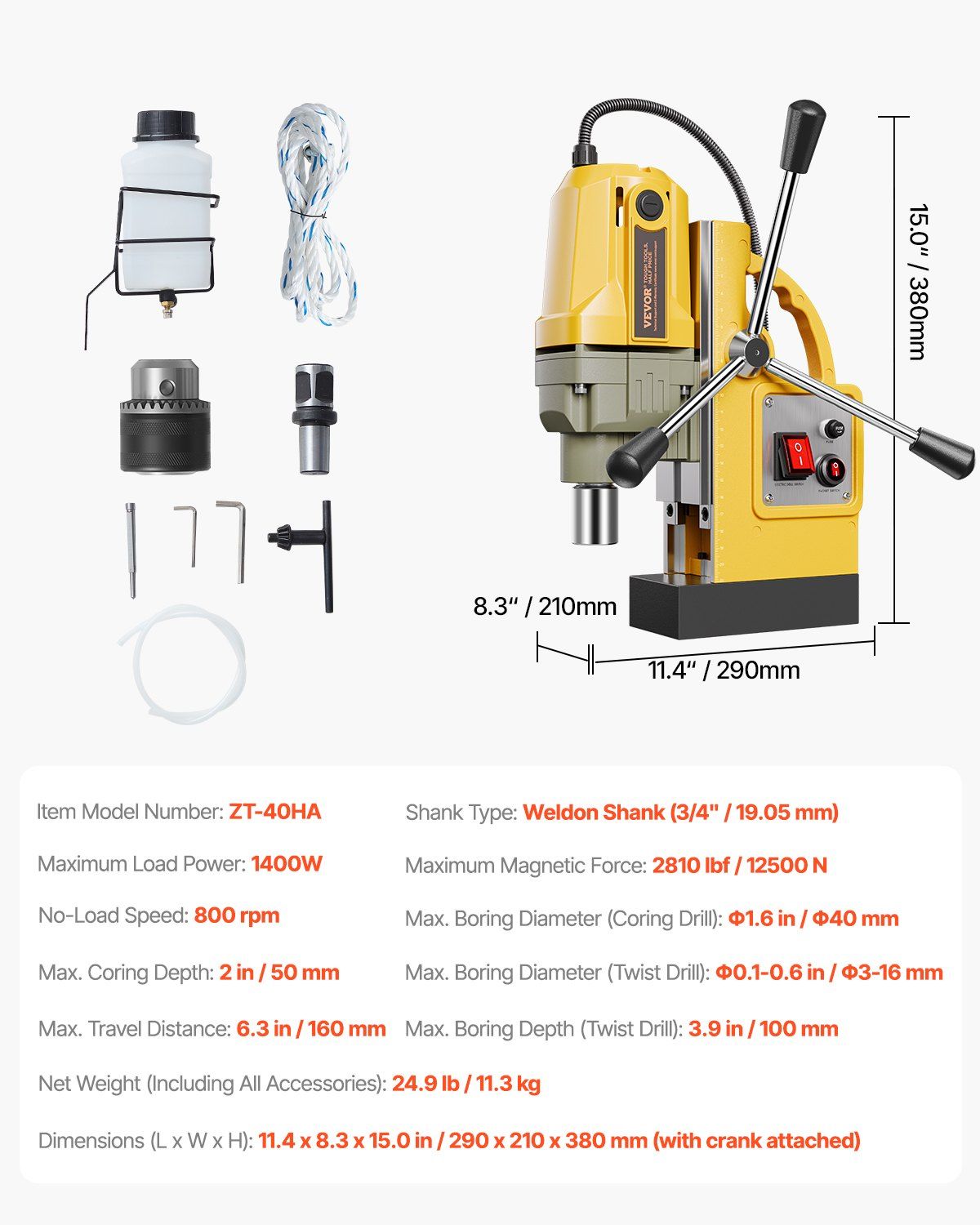

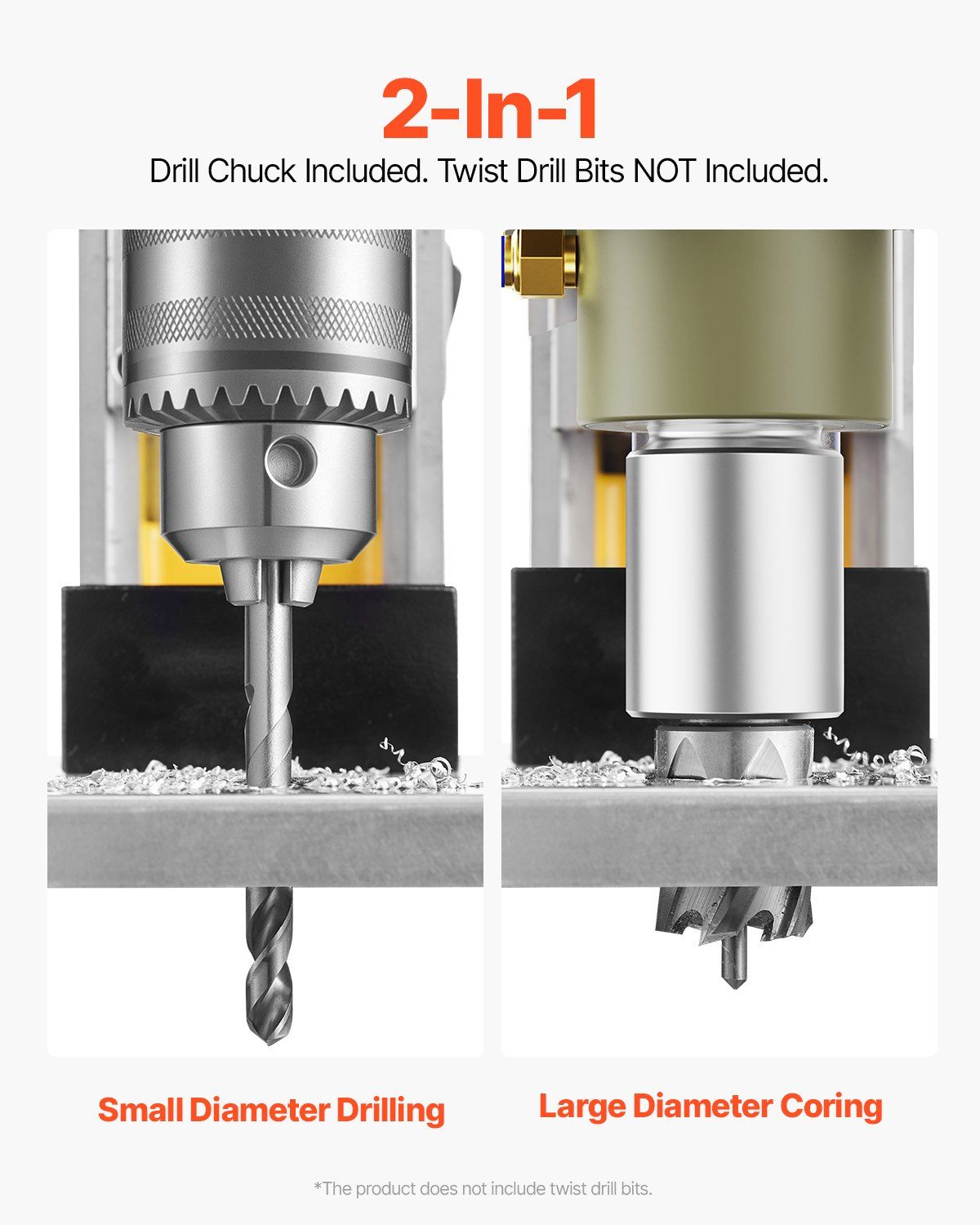

The 1400W copper motor delivers 800 RPM no-load speed with a maximum boring diameter of 1.6 inches (40 mm) and maximum coring depth of 2 inches (50 mm). The electromagnetic base generates 2810 lbf (12,500 N) of holding force, anchoring the drill securely for stable operation at any angle.

Safety and Durability:

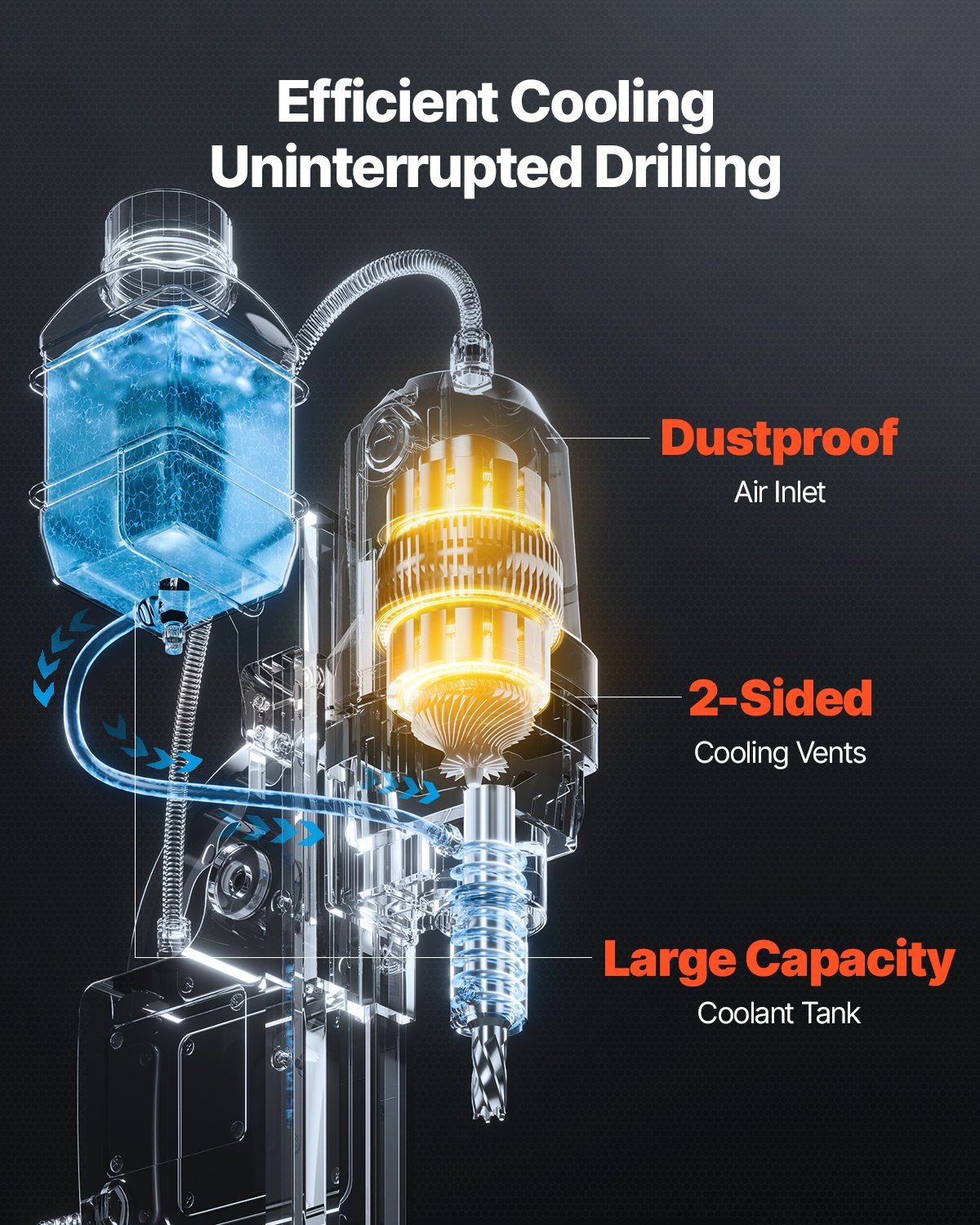

Overload protection features safeguard operators during heavy use. A fast heat dissipation cooling system prevents temperature buildup. The premium alloy guide rail resists corrosion and wear, extending service life. A depth scale integrated into the frame ensures precise hole positioning in millimetres.

Design and Usability:

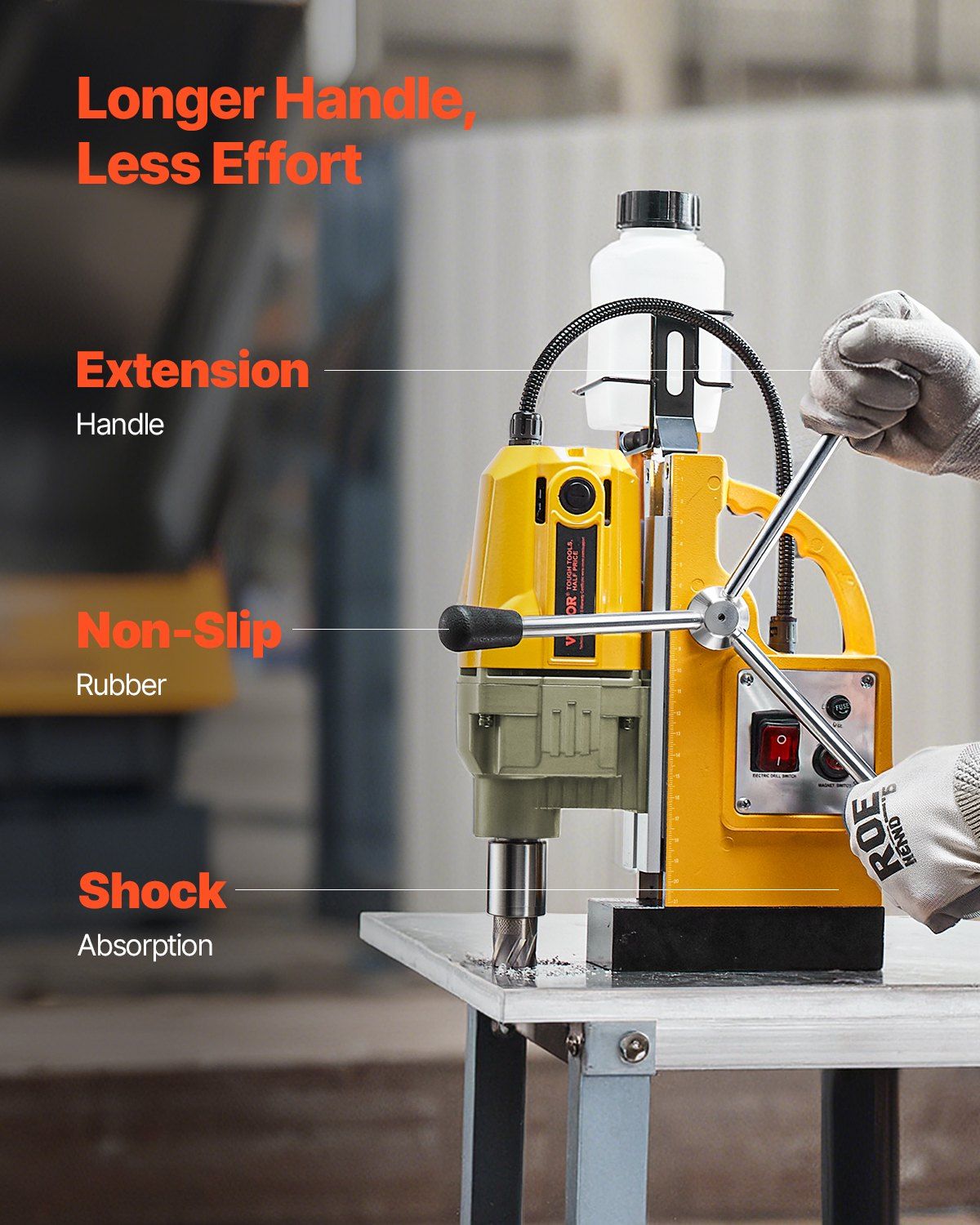

The ergonomic handle and three extended cranks reduce operator fatigue during setup and repositioning. The scale marking helps users achieve accurate, neat holes without guesswork.

Application and Limitations:
Suitable for steel fabrication, equipment installation, rail and bridge building, and shipyard work. Requires steel plate thickness of at least 0.39 inches (10 mm). Not suitable for stainless steel or cast iron. For inverted or horizontal drilling, use a safety rope to secure the unit.

To get started, confirm your steel plate meets the minimum 10 mm thickness requirement before drilling.
