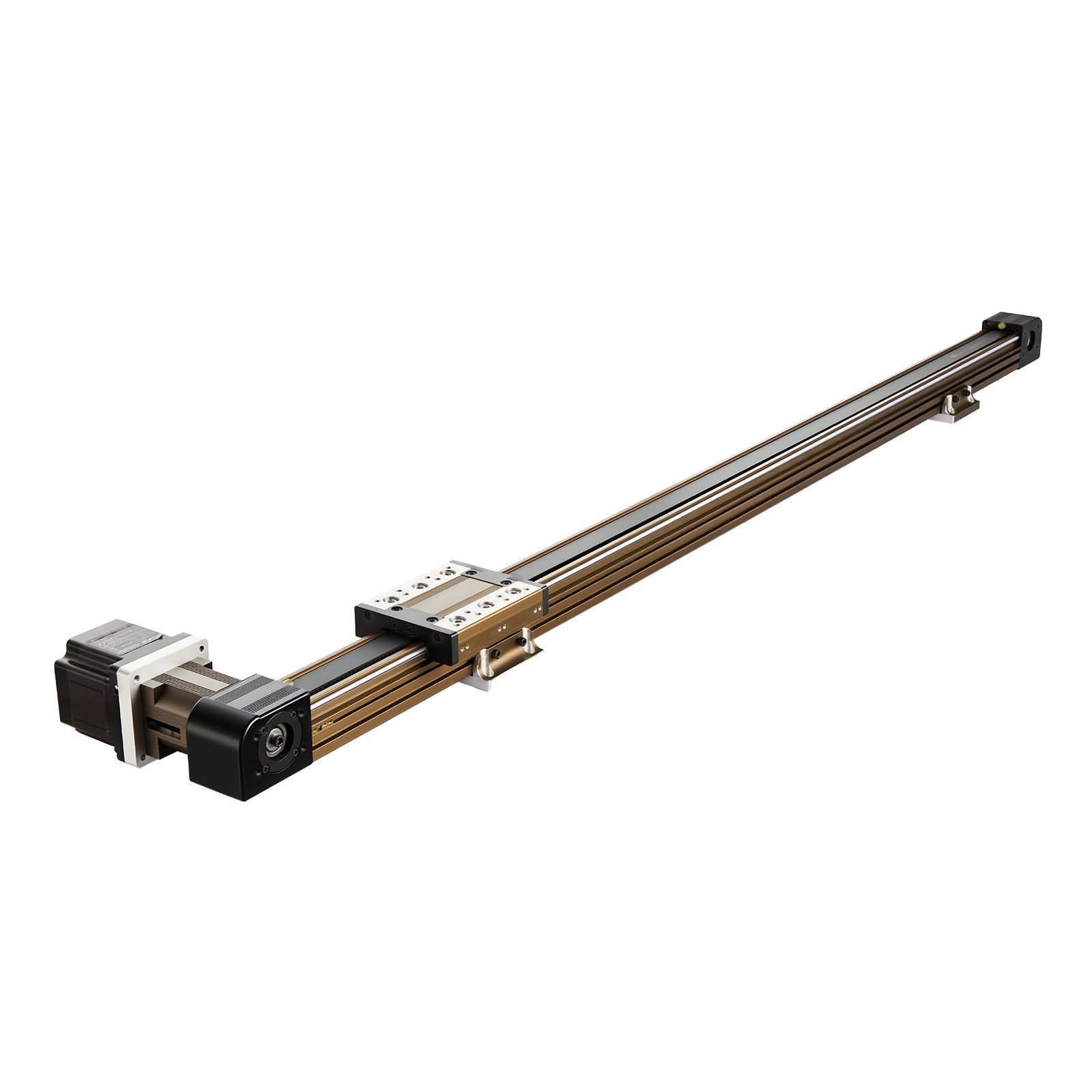

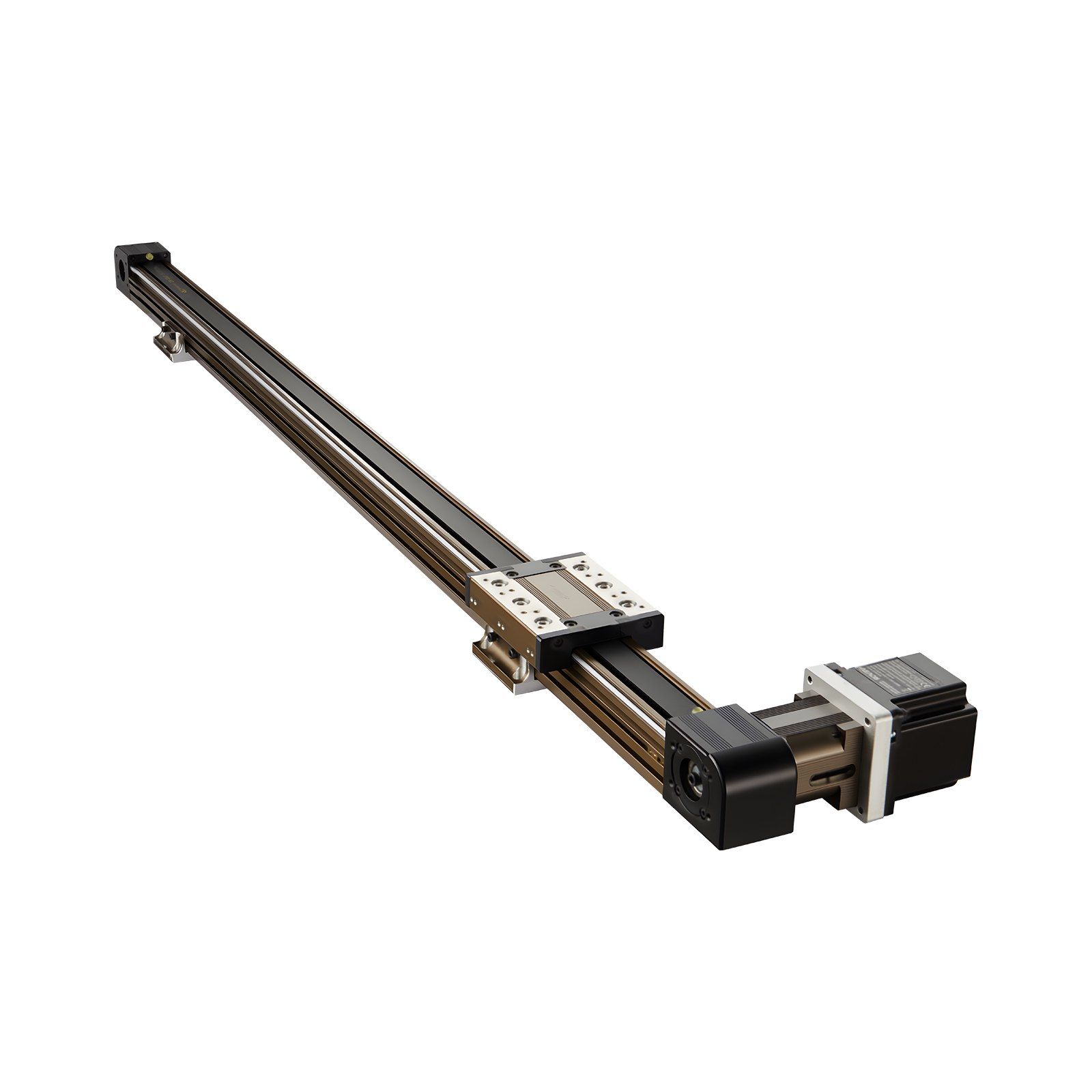

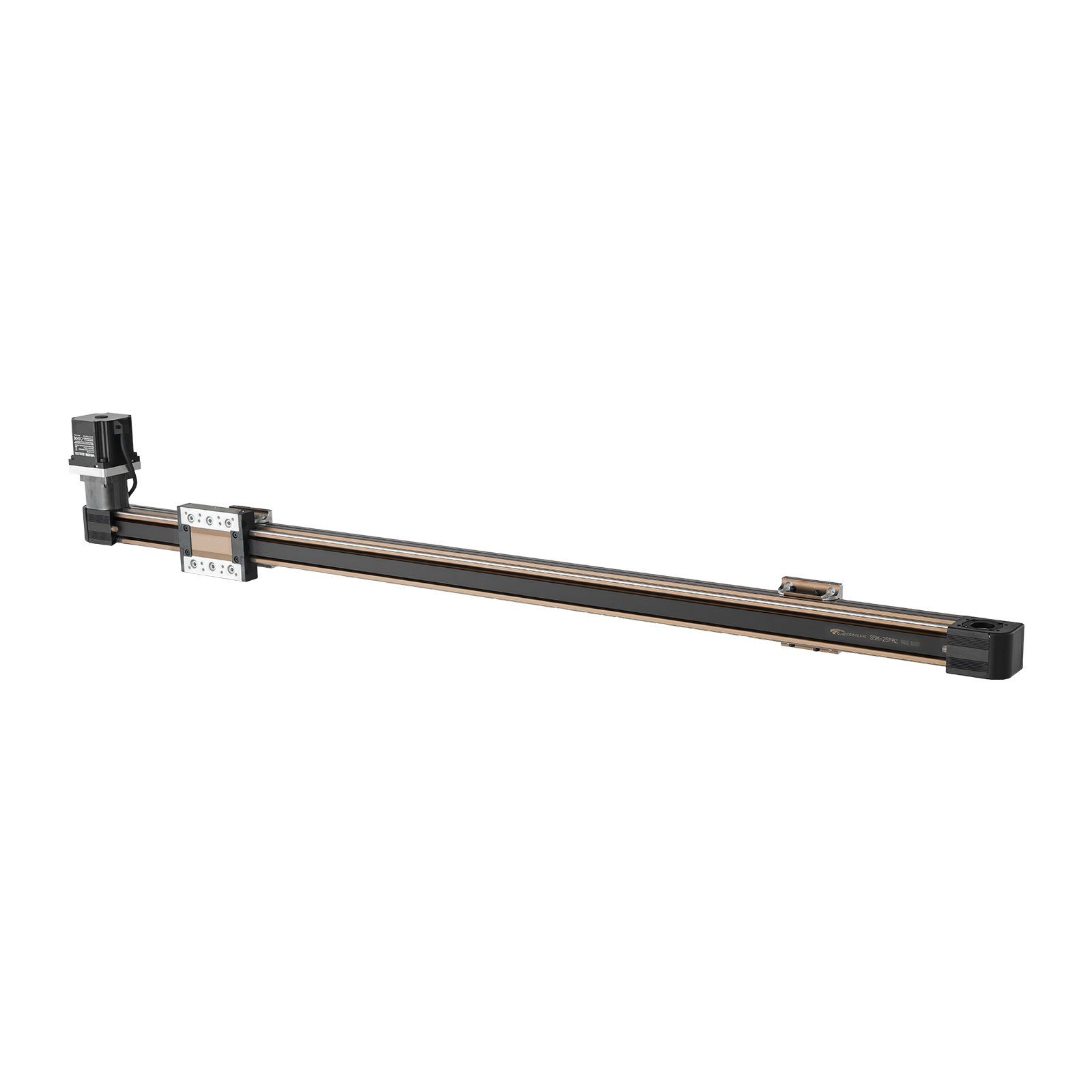

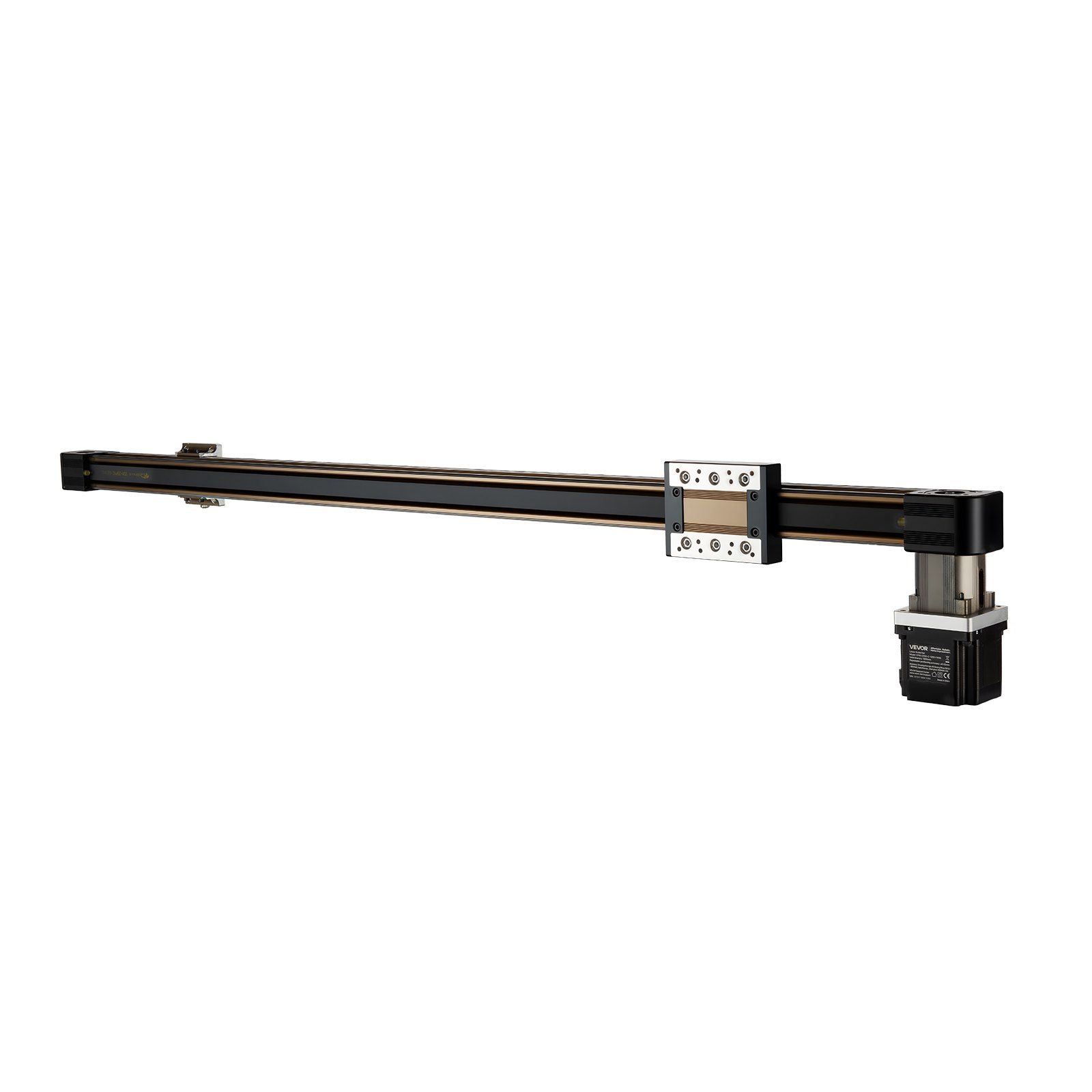

Linear guide rail CNC motion stage, 1300 mm, NEMA 34

This linear guide rail with belt drive is a motorized CNC motion stage designed for engraving machines, CNC milling machines, and 3D printers. It delivers precise, repeatable positioning for demanding applications.

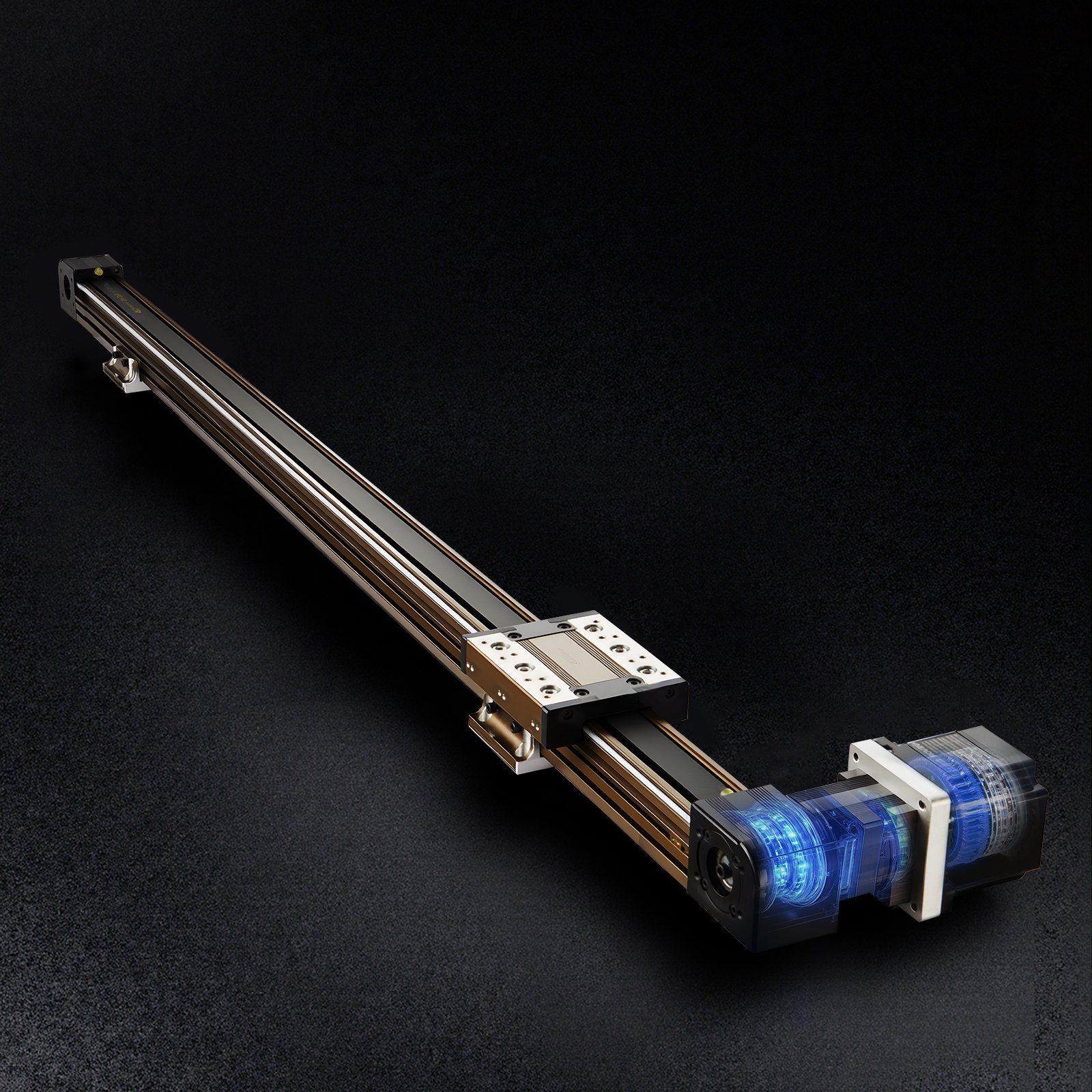

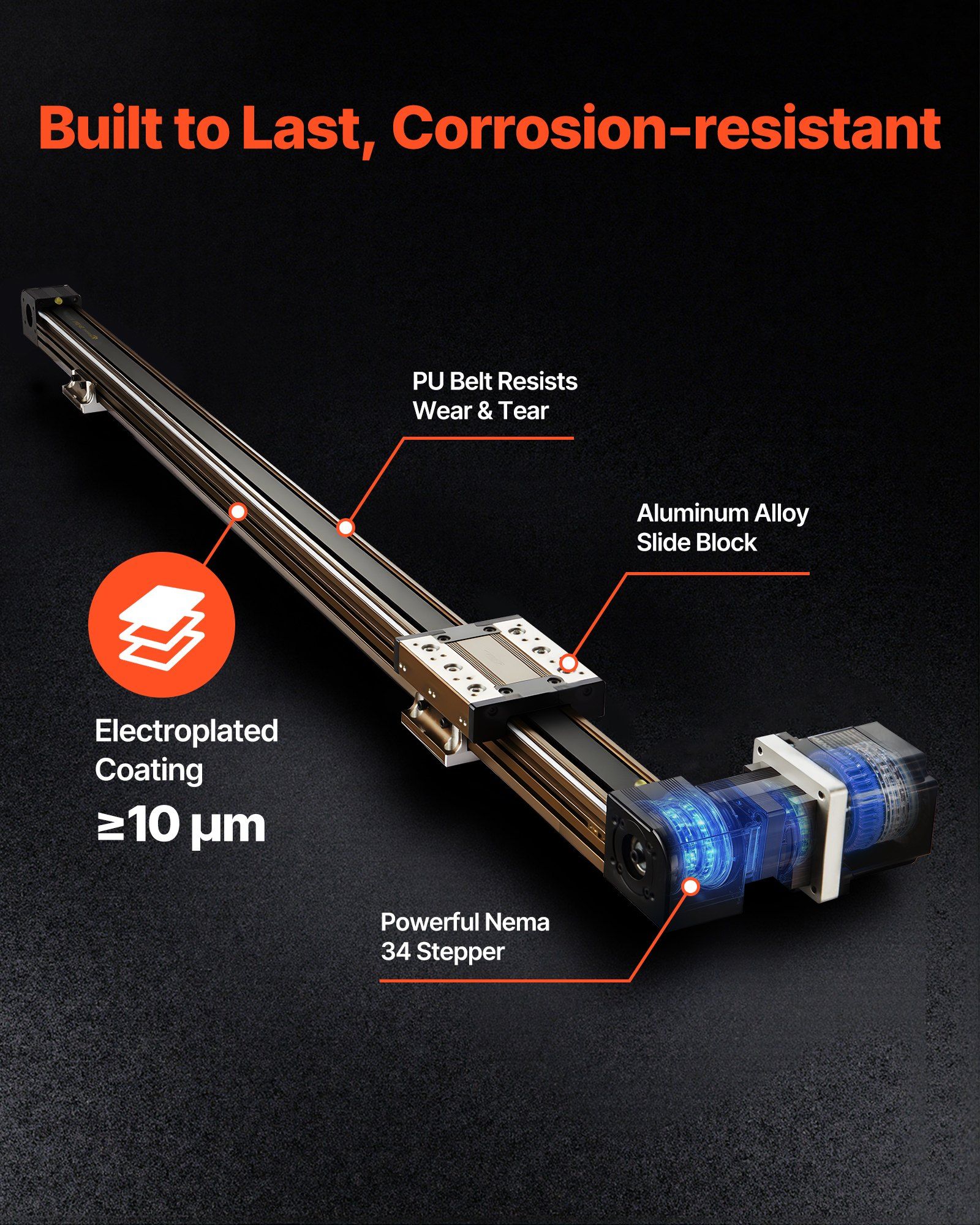

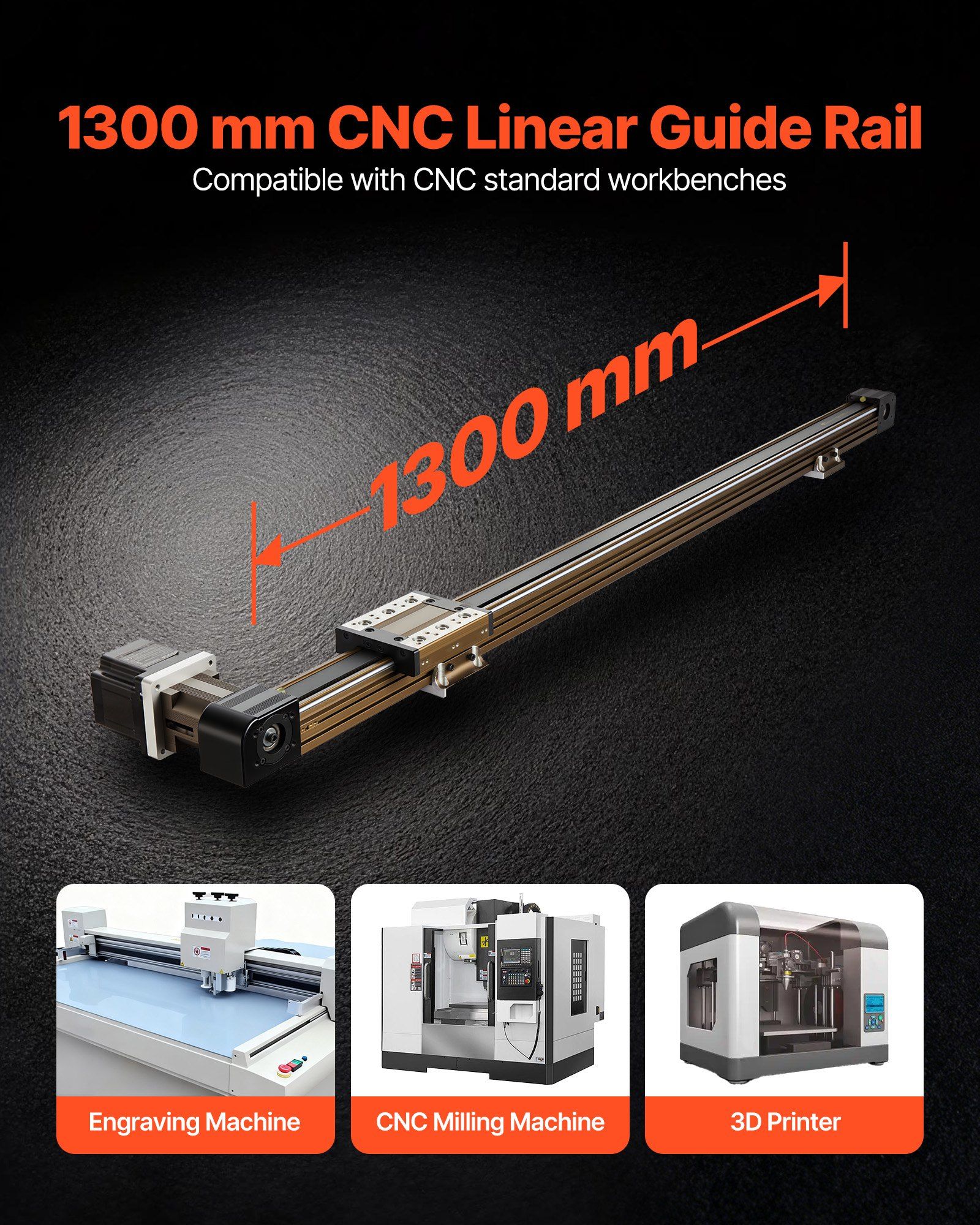

The kit includes a NEMA 34 stepper motor, PU belt, and aluminium alloy slide block with ≥10 μm electroplated coating for corrosion resistance in humid conditions. The 1300 mm effective stroke accommodates larger work areas while maintaining stability across horizontal and vertical movement.

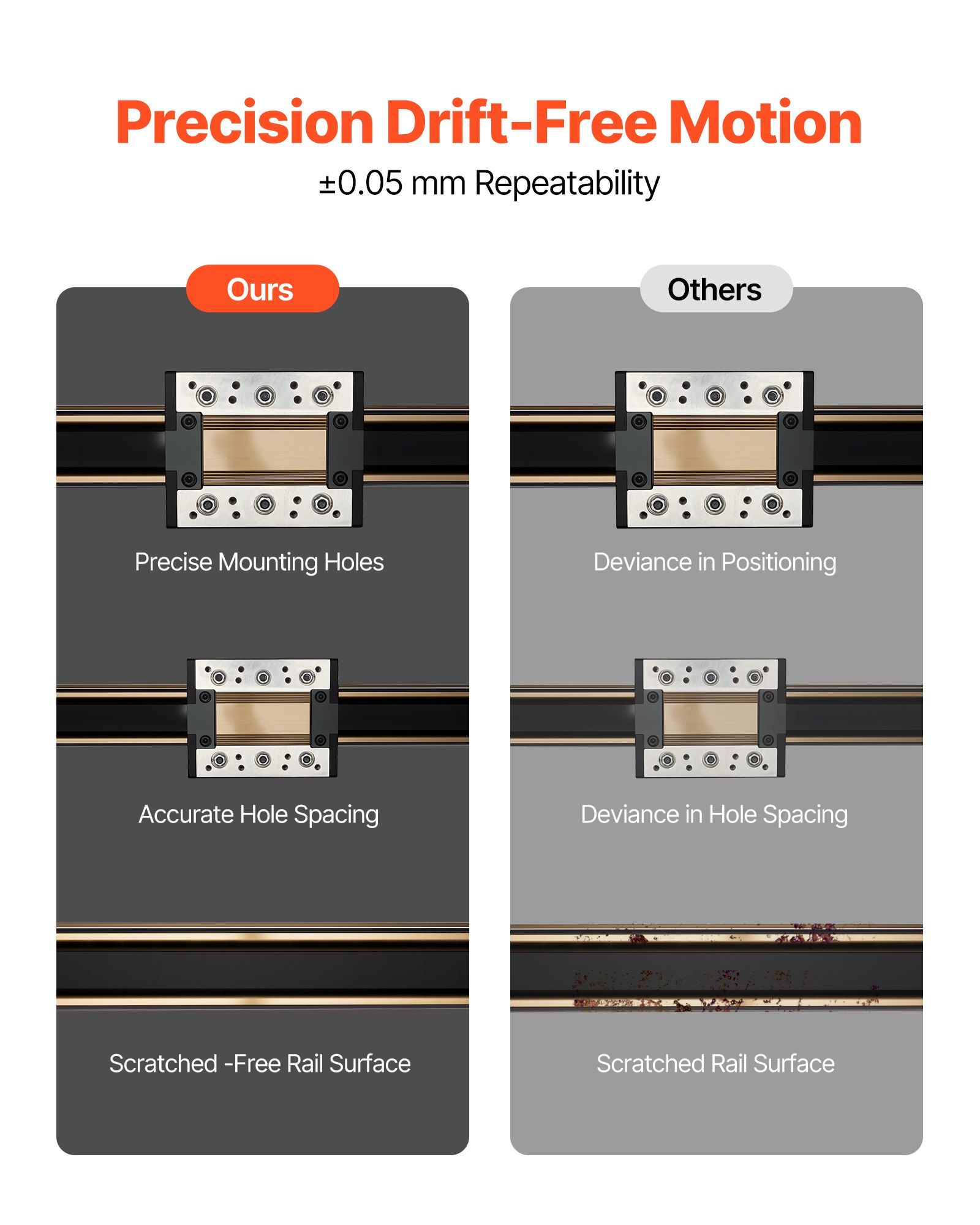

Load capacity reaches 40 kg horizontally and 20 kg vertically. The linear motion guide delivers ±0.05 mm repeatability, ensuring accurate long-stroke motion without deviation. Precisely machined mounting holes and spacing simplify installation—no special tools required.

The design suits both DIY assembly and professional replacements. Setup is straightforward, making it accessible for rapid integration into existing systems.

Verify compatibility with your specific machine before purchase.
