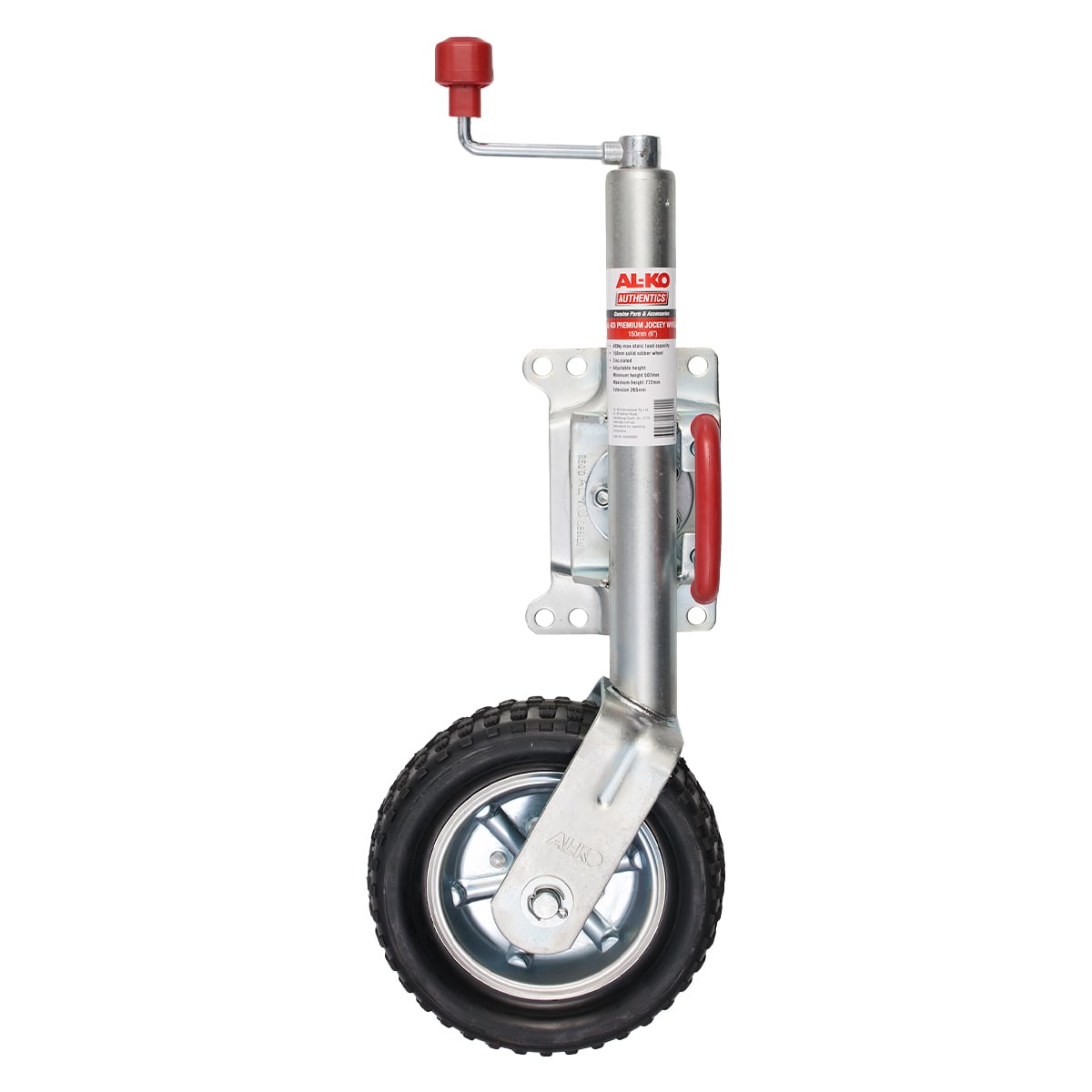

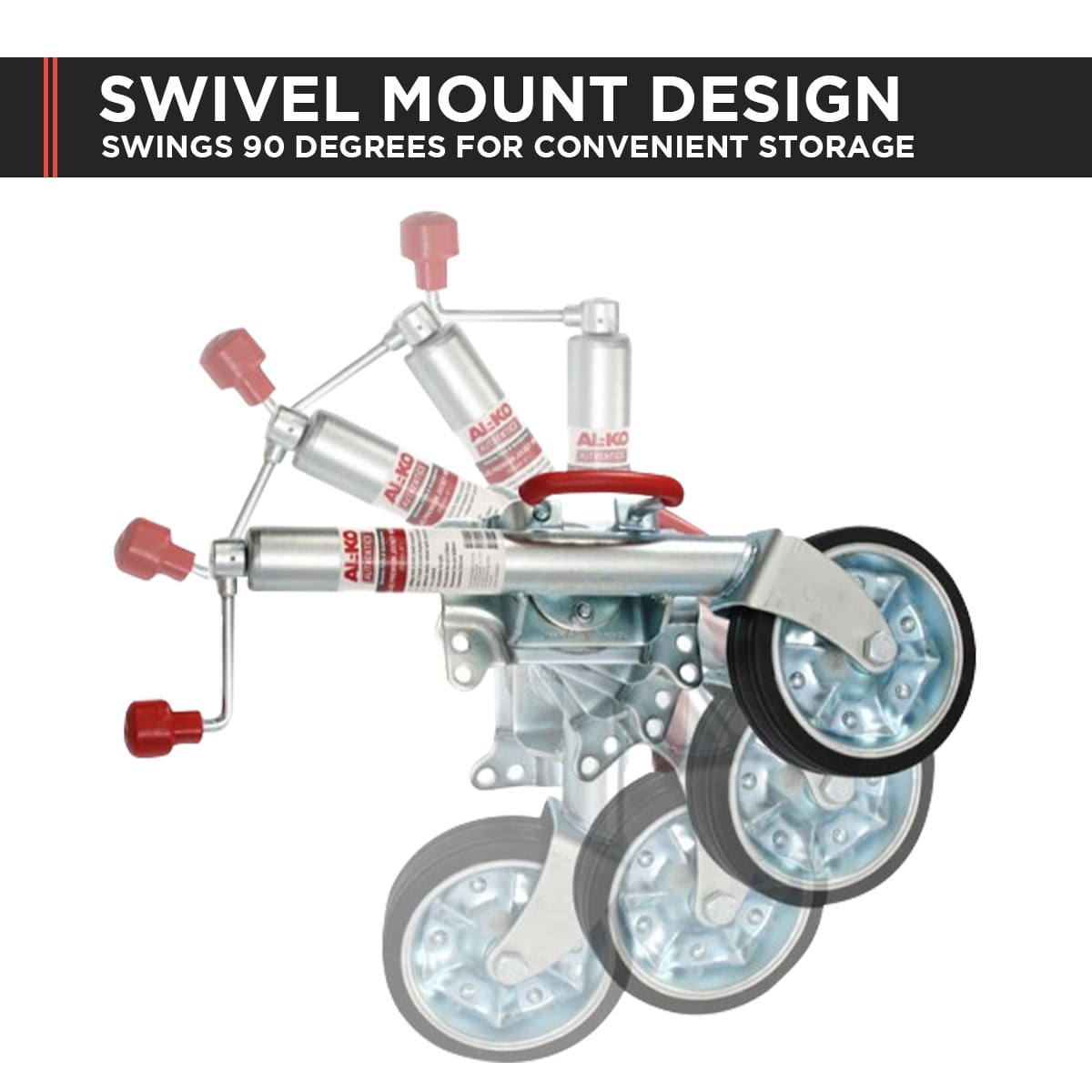

This AL-KO swivel jockey wheel is designed for quick coupling and uncoupling of trailers and caravans. The shaft rotates into a horizontal position for convenient storage without removal after use.

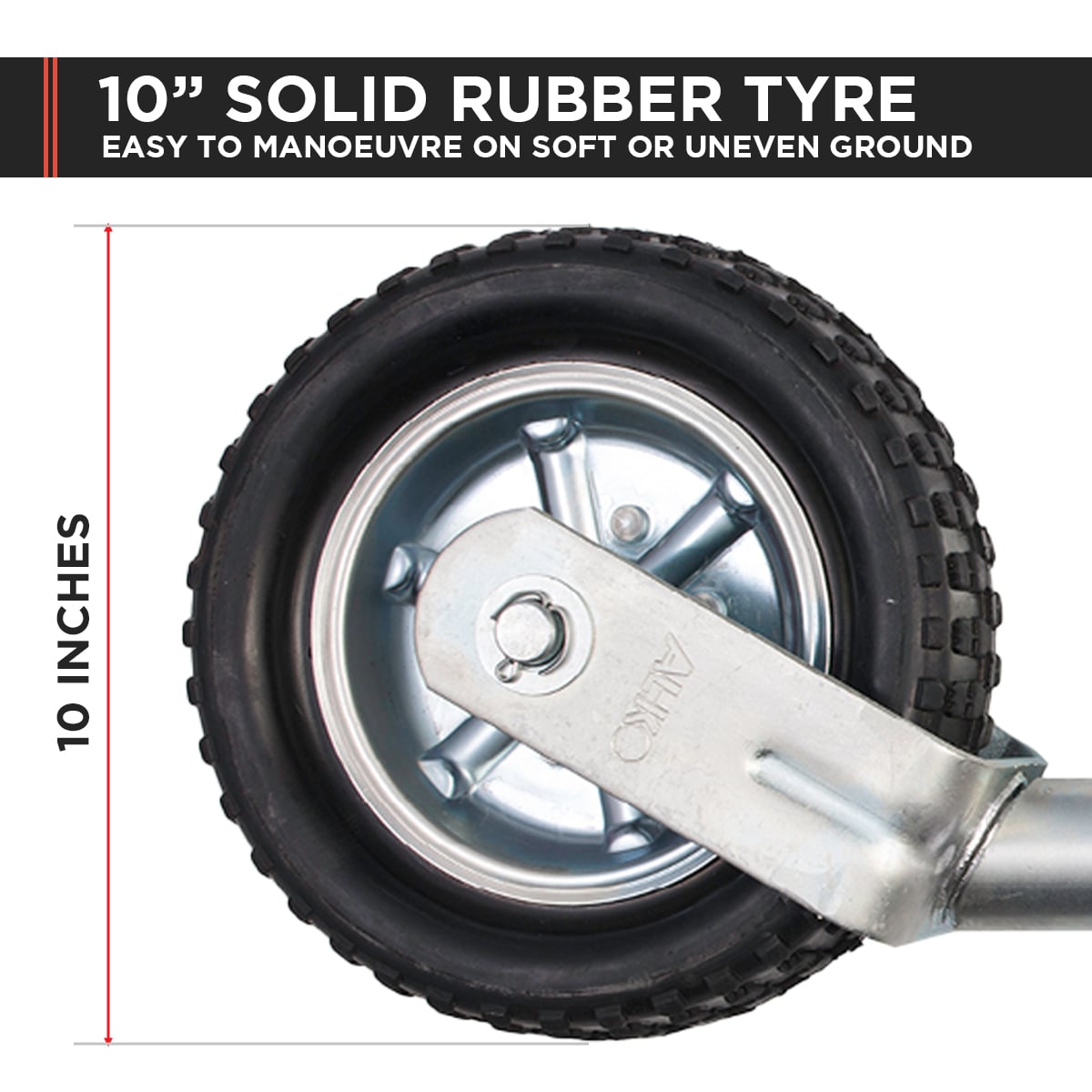

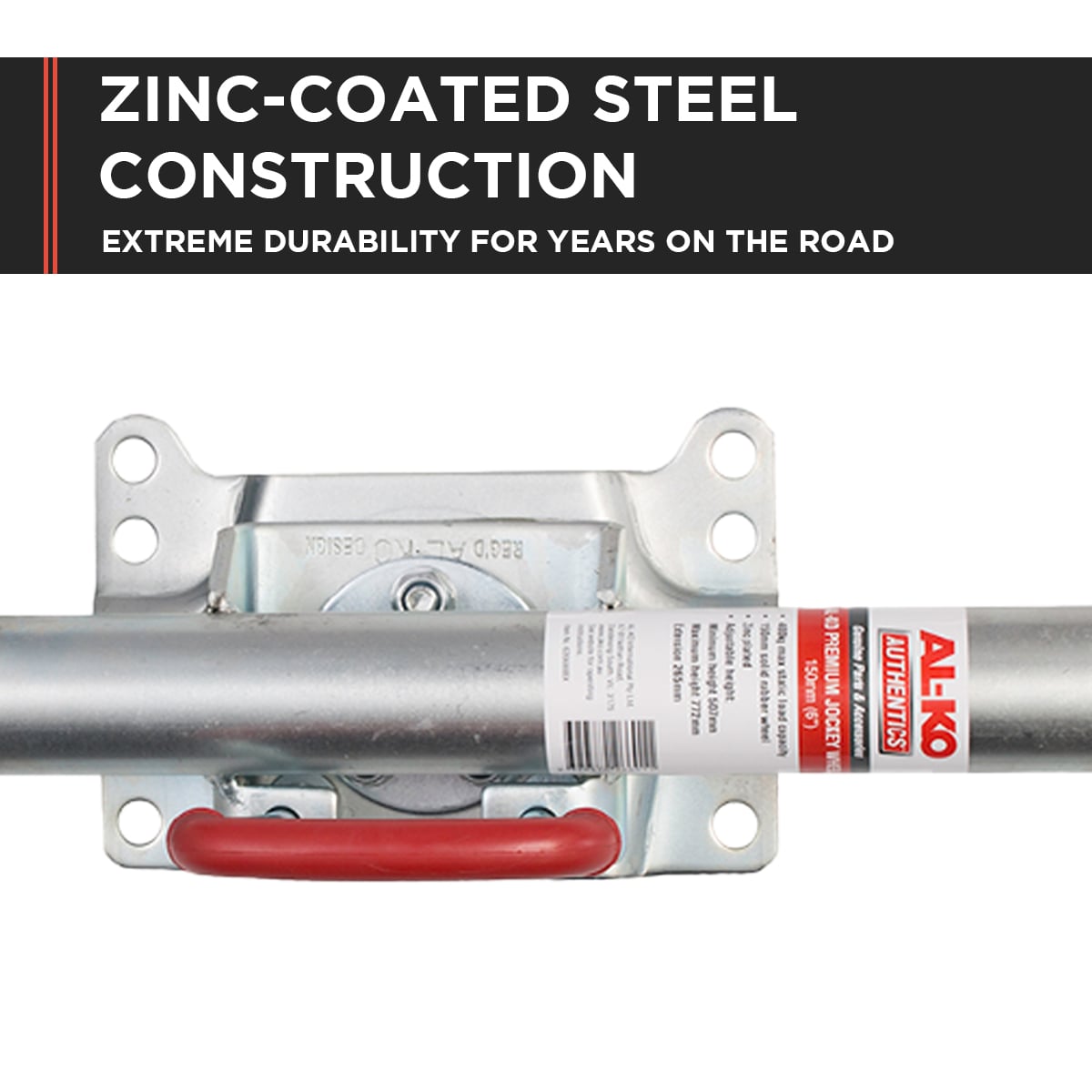

Built for heavy-duty work, the wheel carries a static weight capacity of 400kg. The 250mm solid rubber tyre performs reliably on soft and uneven ground, while the 48mm zinc-coated shaft resists corrosion in all conditions.
Installation is straightforward via the bolt-on swivel bracket onto your drawbar. The quick-release handle simplifies operation. With a lift range of 320mm to 570mm between ground and drawbar centre, this wheel suits caravans and trailers requiring substantial support.

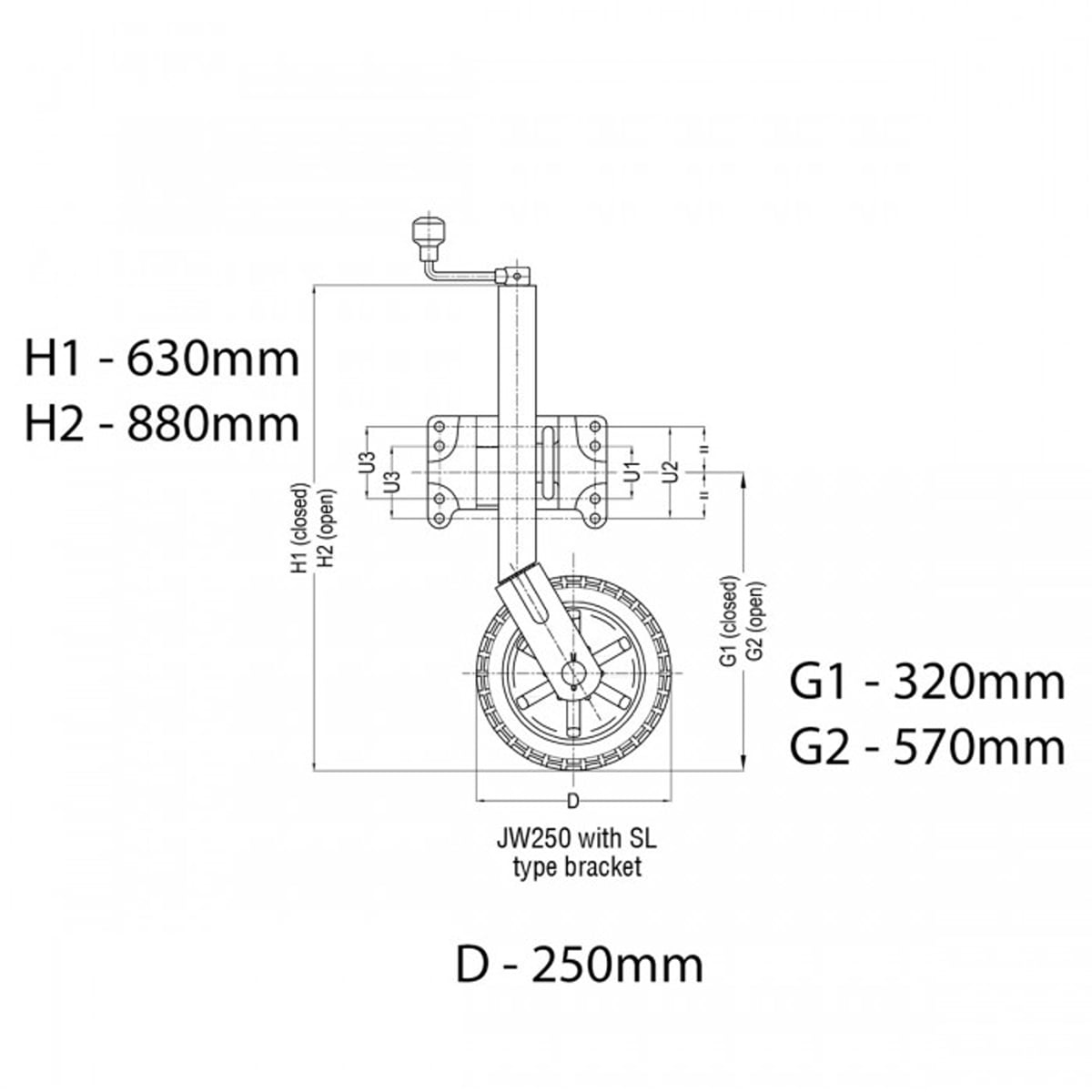

Dimensions and specifications:
– Closed height: 630mm
– Open height: 880mm
– Width: 185mm
– Weight: 11kg
– Frame: steel
Select this jockey wheel if you tow regularly and need a strong, durable solution that stays mounted and ready.
