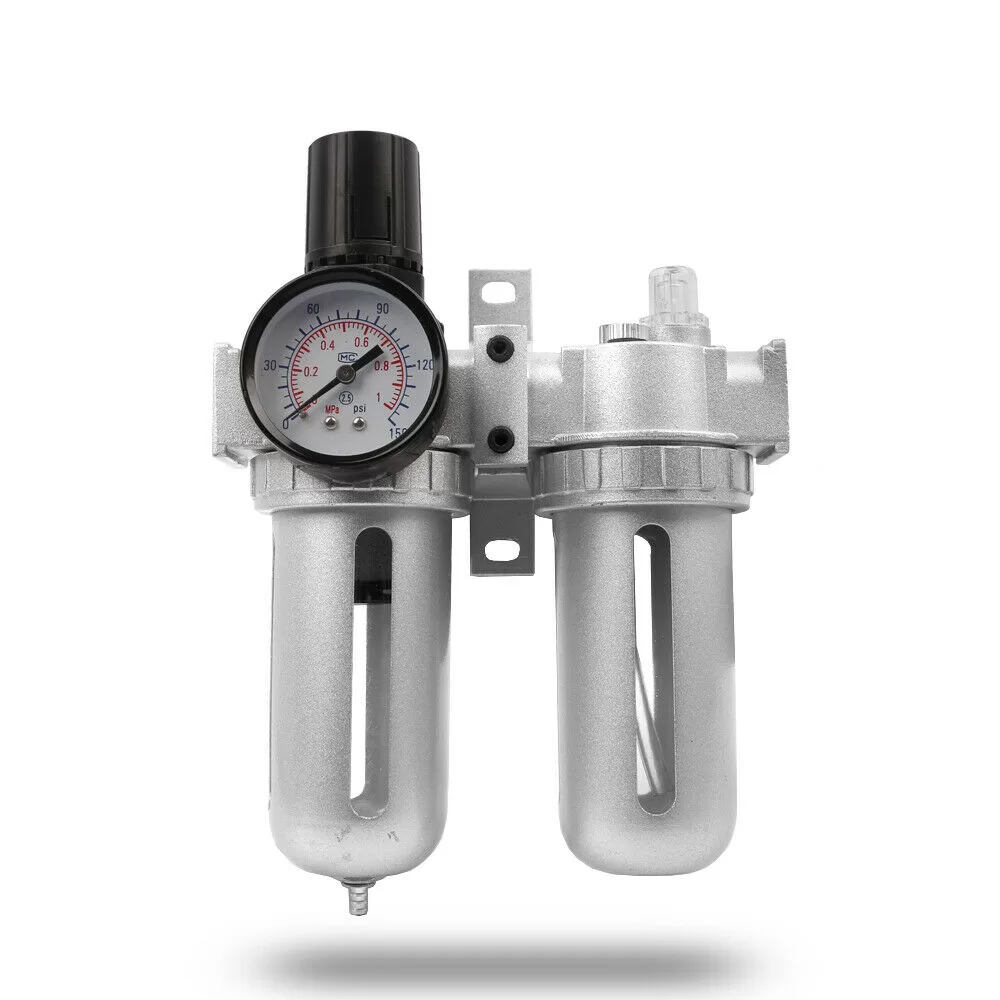

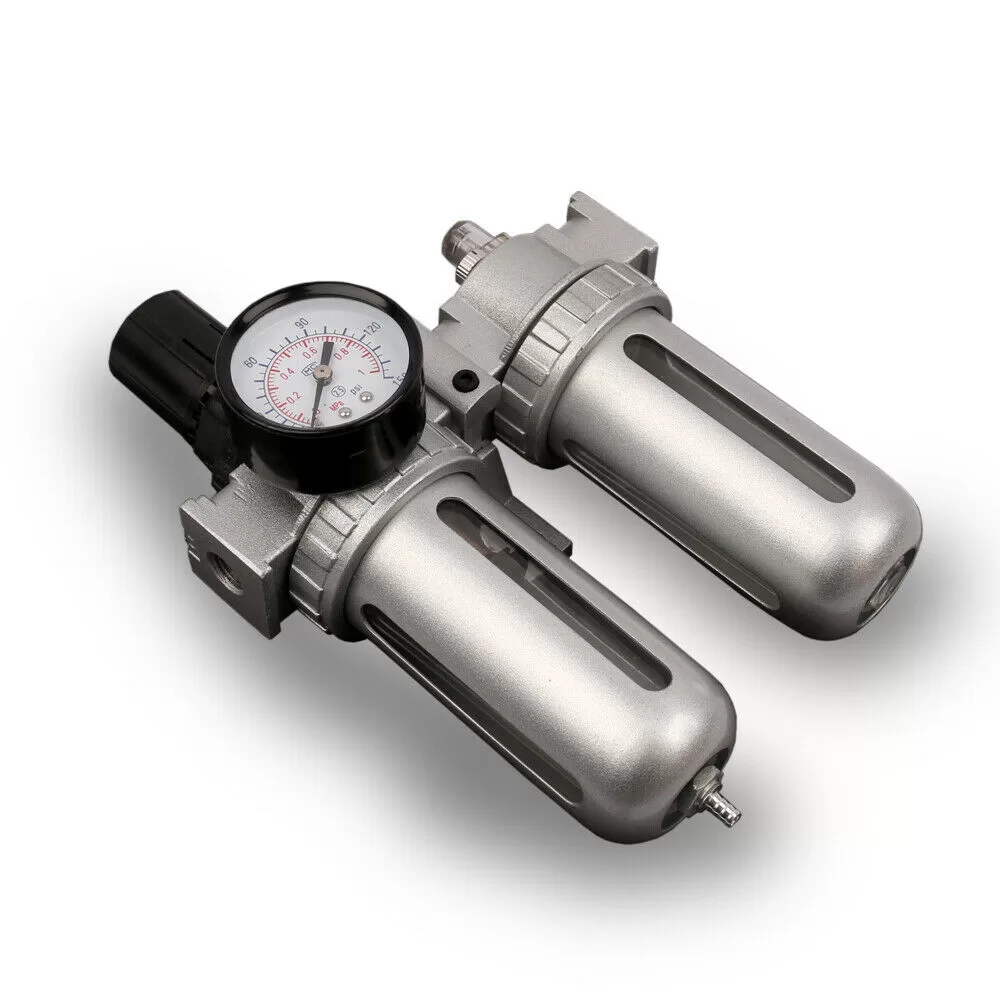

Air Compressor Water Trap Regulator Filter with Pressure Gauge

This air compressor water trap and regulator removes moisture and contaminants from your airline, delivering clean, dry air to your tools. Ideal for spray painting, pneumatic equipment, and precision air-driven work.

The unit features a 40-micron particulate filter that traps water and oil, protecting your tools from corrosion and damage. It doubles as a lubricator, delivering a light oil mist to keep pneumatic motors and cylinders running smoothly.

Specifications:
– Regulating pressure range: 30–120 PSI
– Maximum pressure: 145 PSI
– Flow rate: 35 CFM (1000 L/min)
– Port size: 1/4″ BSP inlet and outlet
– Particulate filtration: 40 micron

What’s included:
– Air compressor moisture trap with integrated regulator

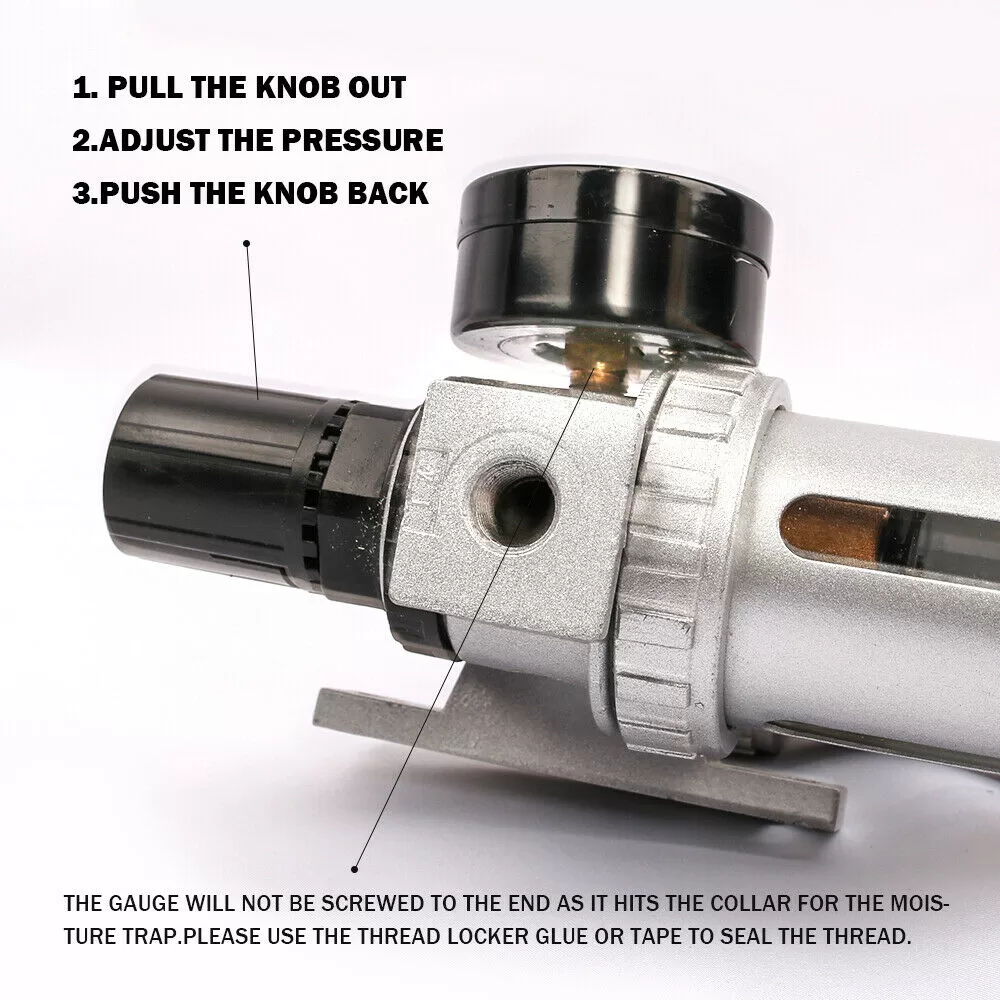

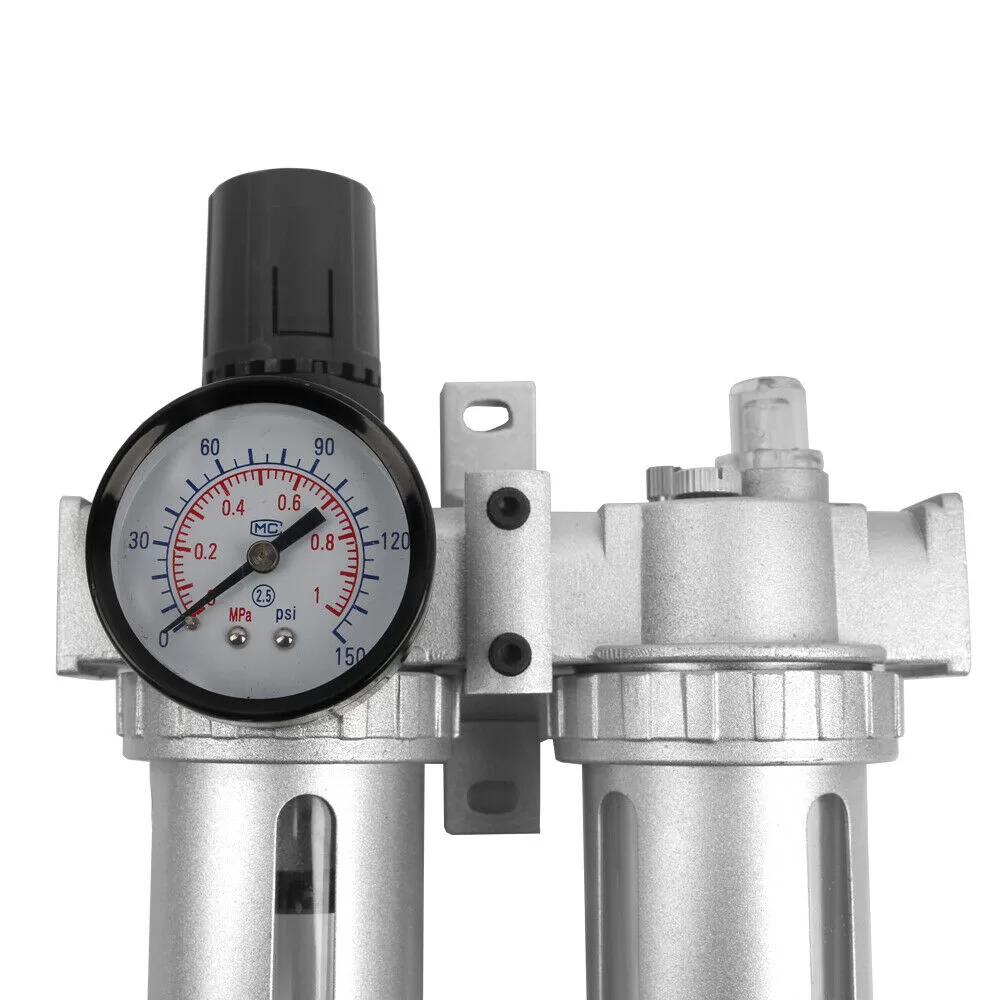

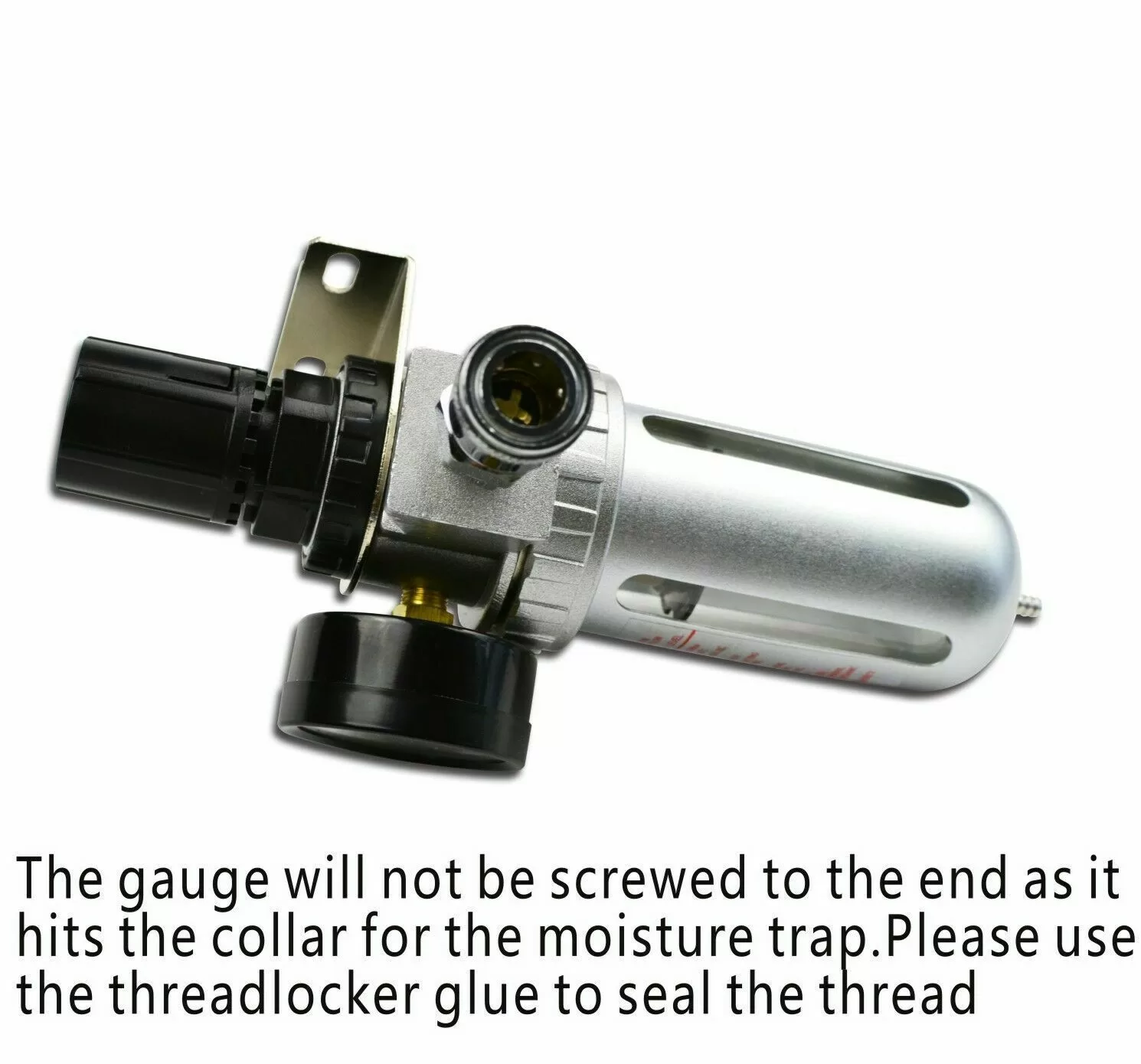

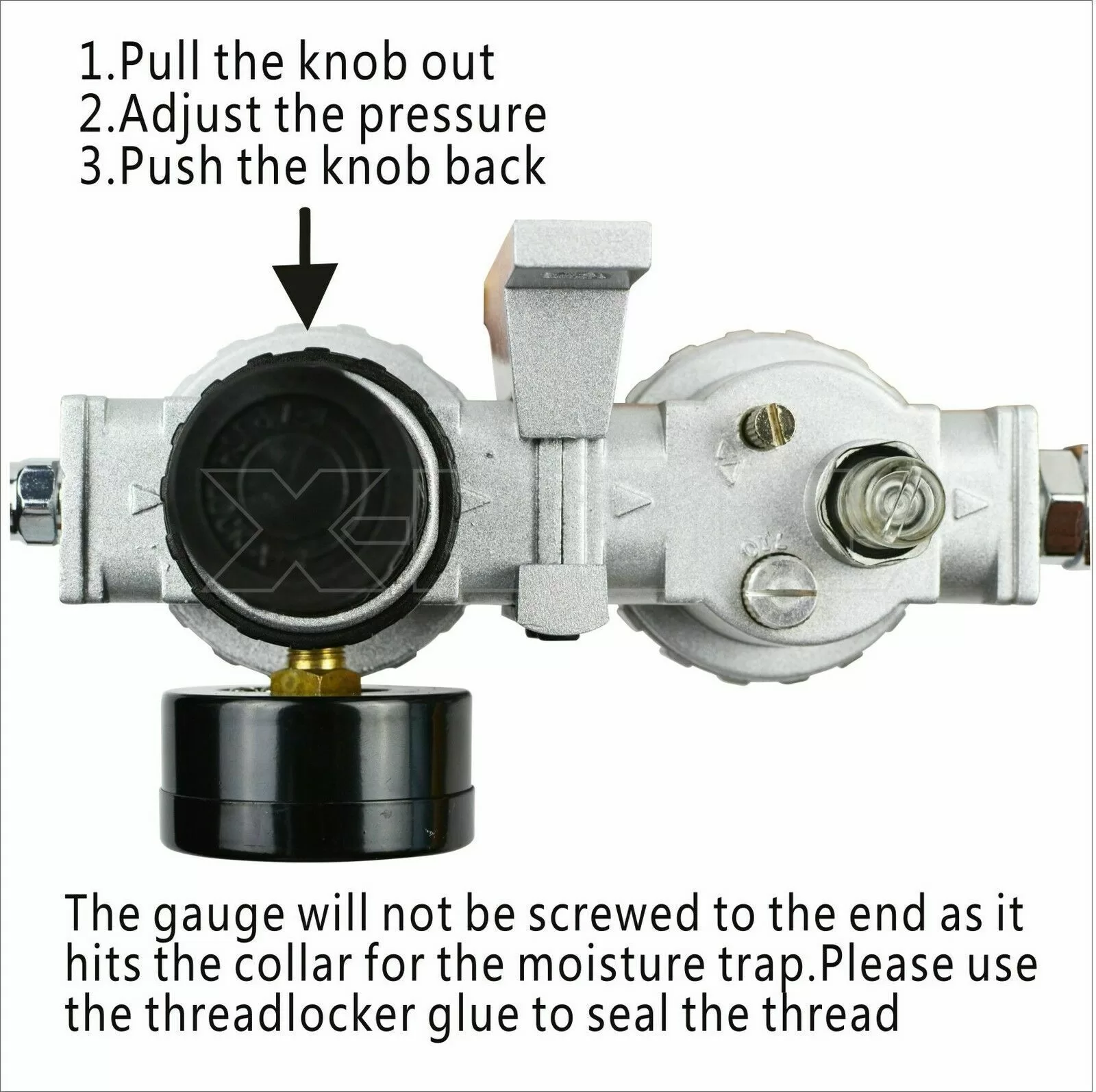

– Pressure gauge

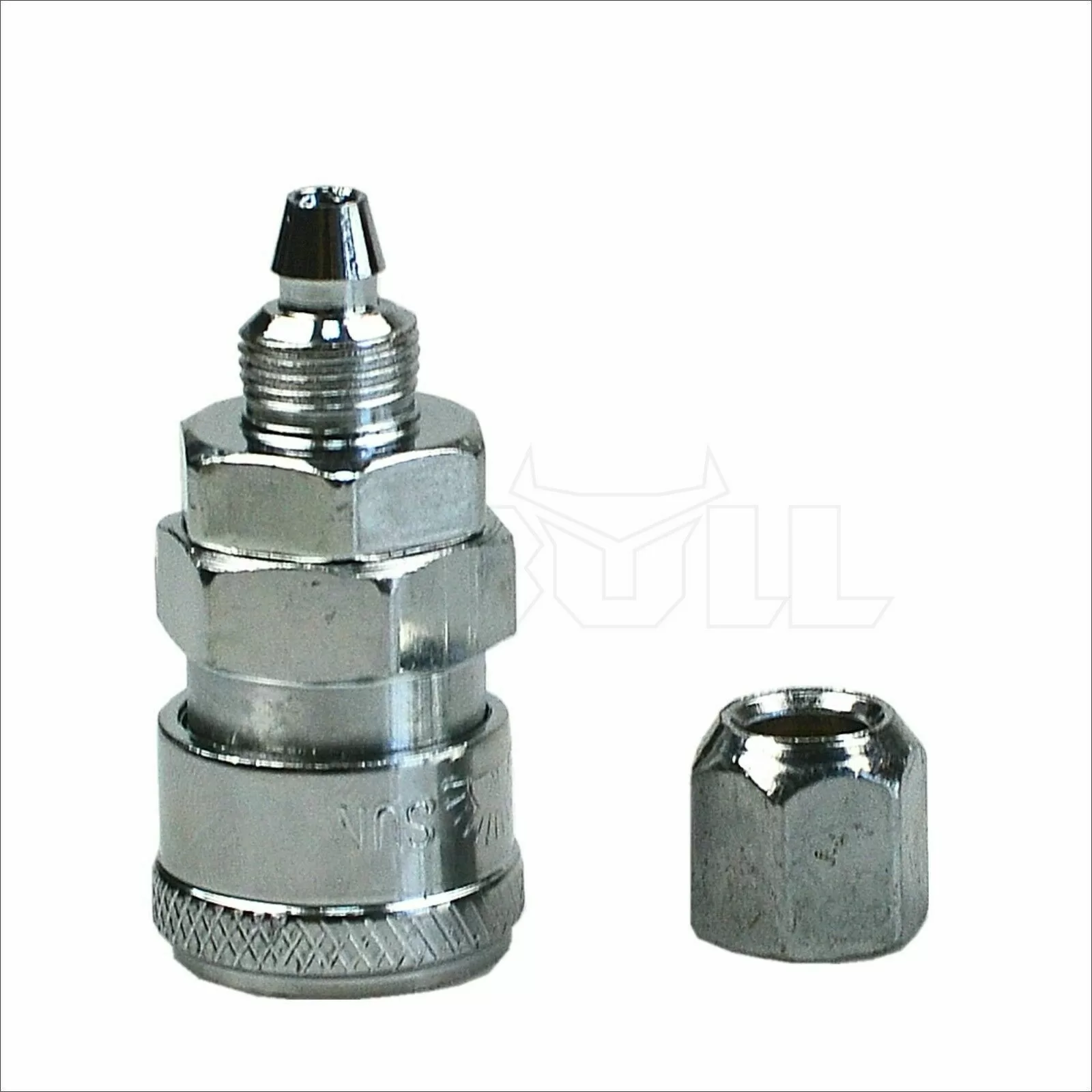

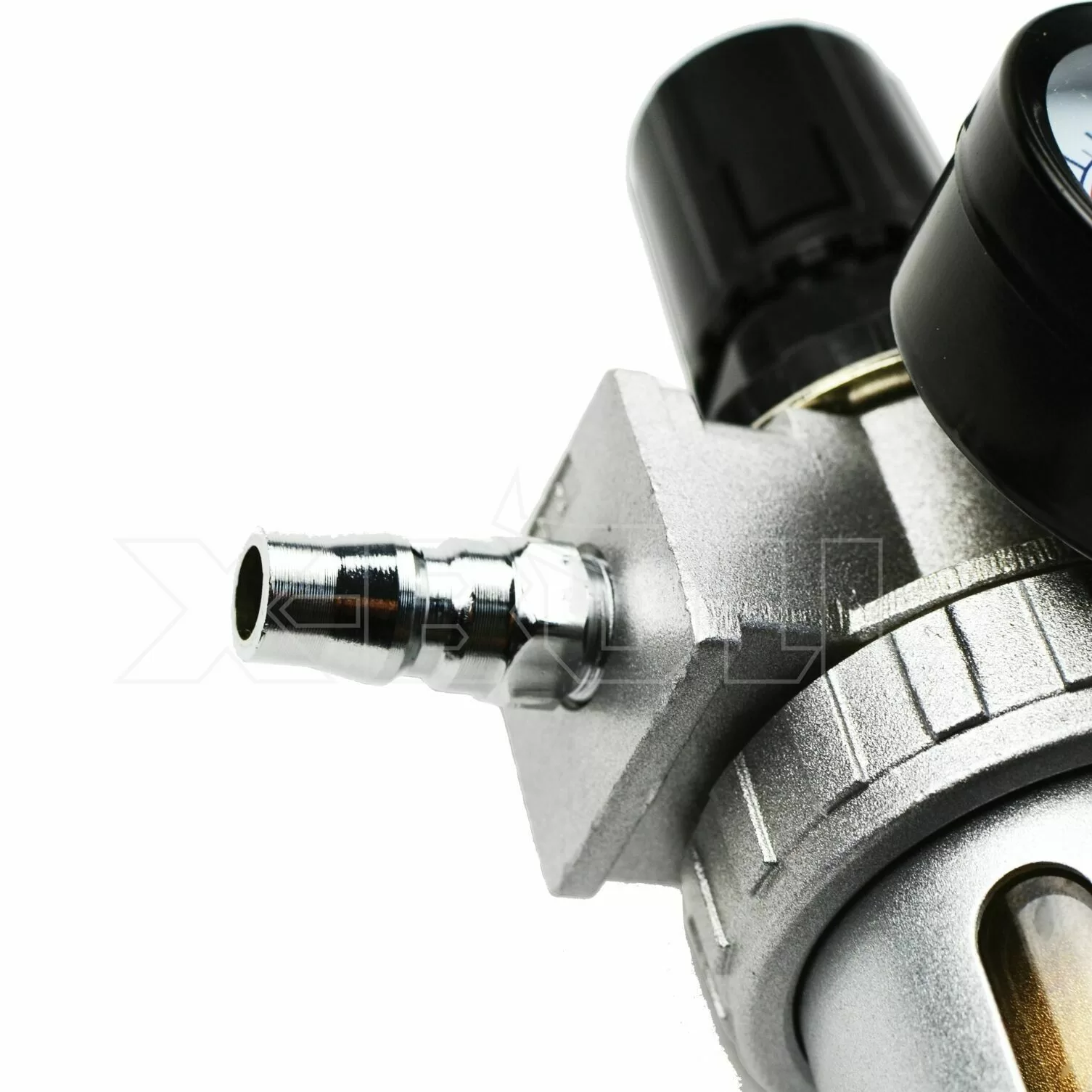

– 4 connector fittings (Nitto-type quick connectors and hose connectors)
– Mount bracket

Installation tip: Wrap the threaded connections with TEFLON tape before assembly to prevent air leaks.

This compact unit suits small to medium compressors and workshop setups. Check your compressor’s CFM output against the 35 CFM maximum flow rating. Order today and protect your air tools.
