1/8″ 12V DC 2-Way Solenoid Valve Normally Closed

This is a 12V DC solenoid valve, model 2V025-08, designed for controlling air, gas, and water in pneumatic systems. The 2-way, normally closed configuration ensures safe operation when de-energised.

The valve body is constructed from aluminium alloy, offering strong pressure resistance and reliable sealing. It features an internal pilot structure and sliding column design for responsive, precise control with minimal lag.

Specifications:
– Port size: 1/8″ NPT
– Pressure range: 0–115 PSI
– Temperature range: 0–140°F (–18 to 60°C)
– Coil voltage: 12V DC
– Configuration: 2-way, normally closed

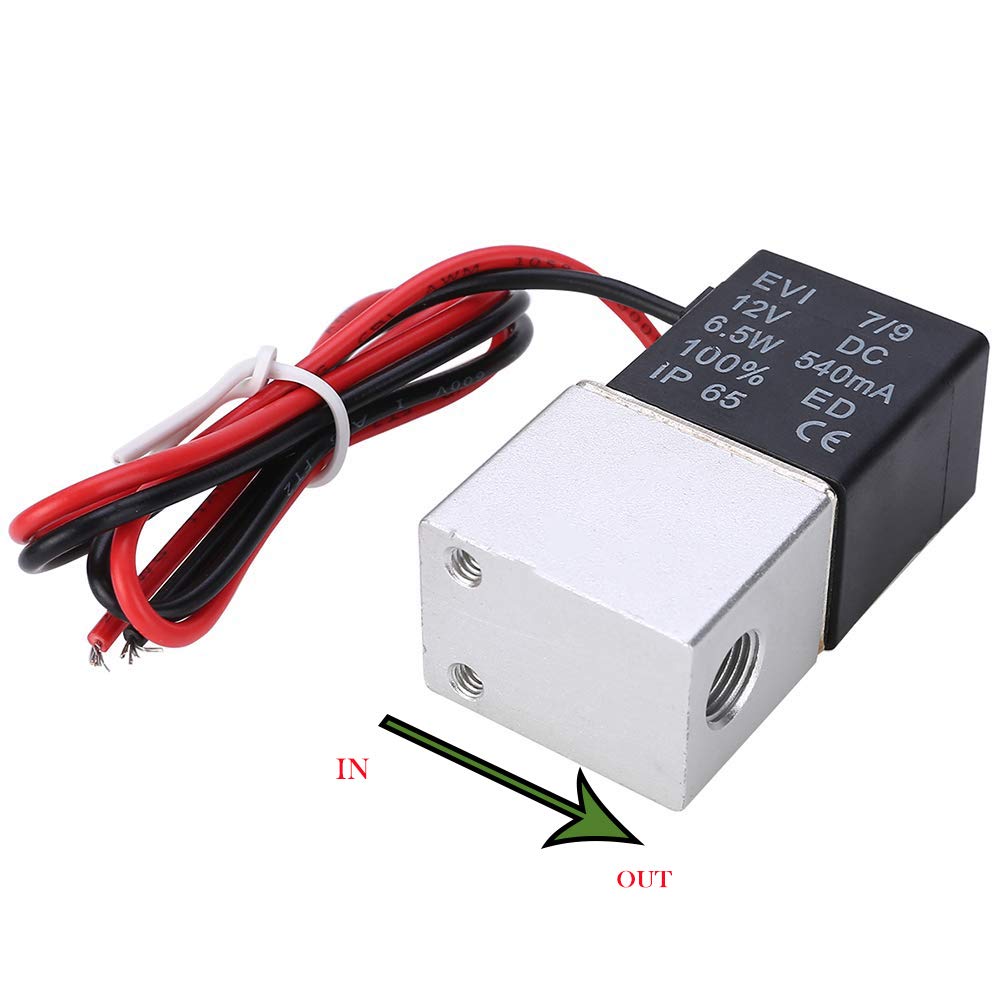

– Flow direction: Observe arrow marking on valve body

The fast response time makes it suitable for automated control applications requiring quick on-off switching. Installation is straightforward with standard NPT threading.

For returns and support, products that arrive faulty, damaged, or not as described are eligible for replacement or refund under the Australian Consumer Law. We do not accept returns for change of mind. Delivery typically takes 7–12 working days depending on location.

Contact us with your application requirements if you need assistance selecting the right pressure or flow rating.
